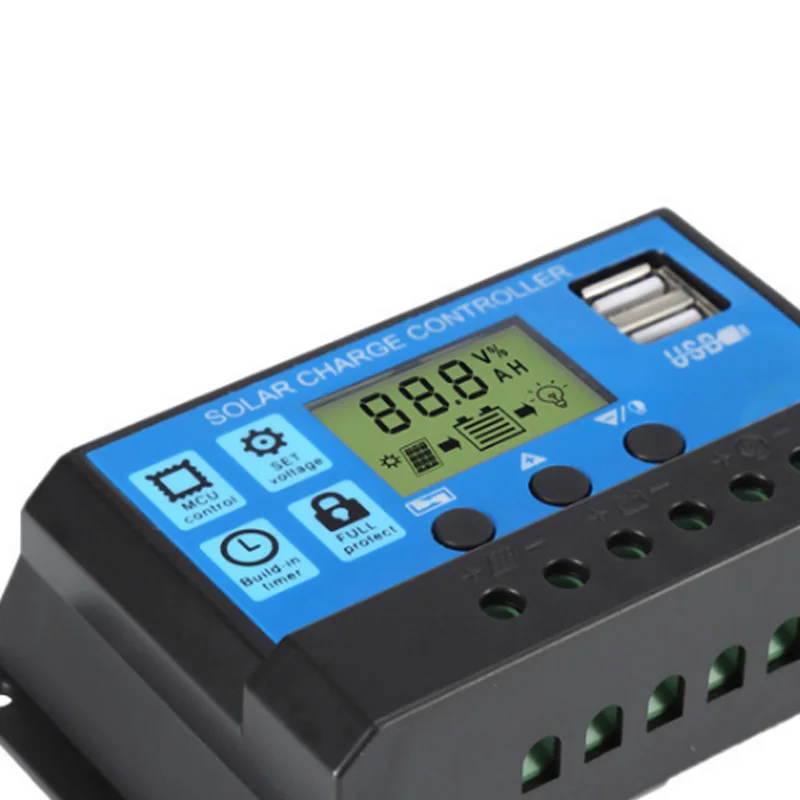

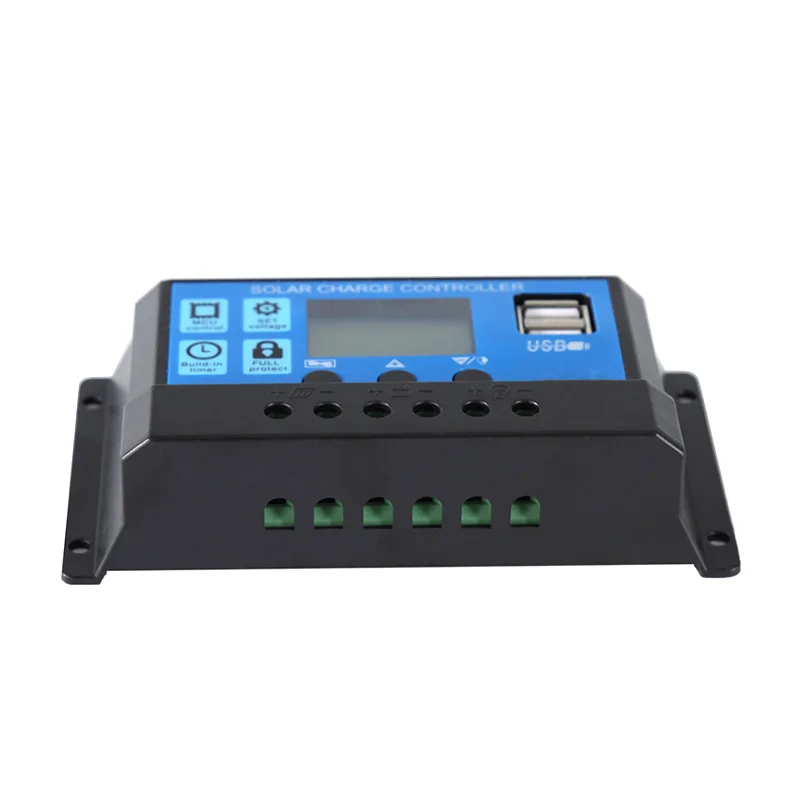

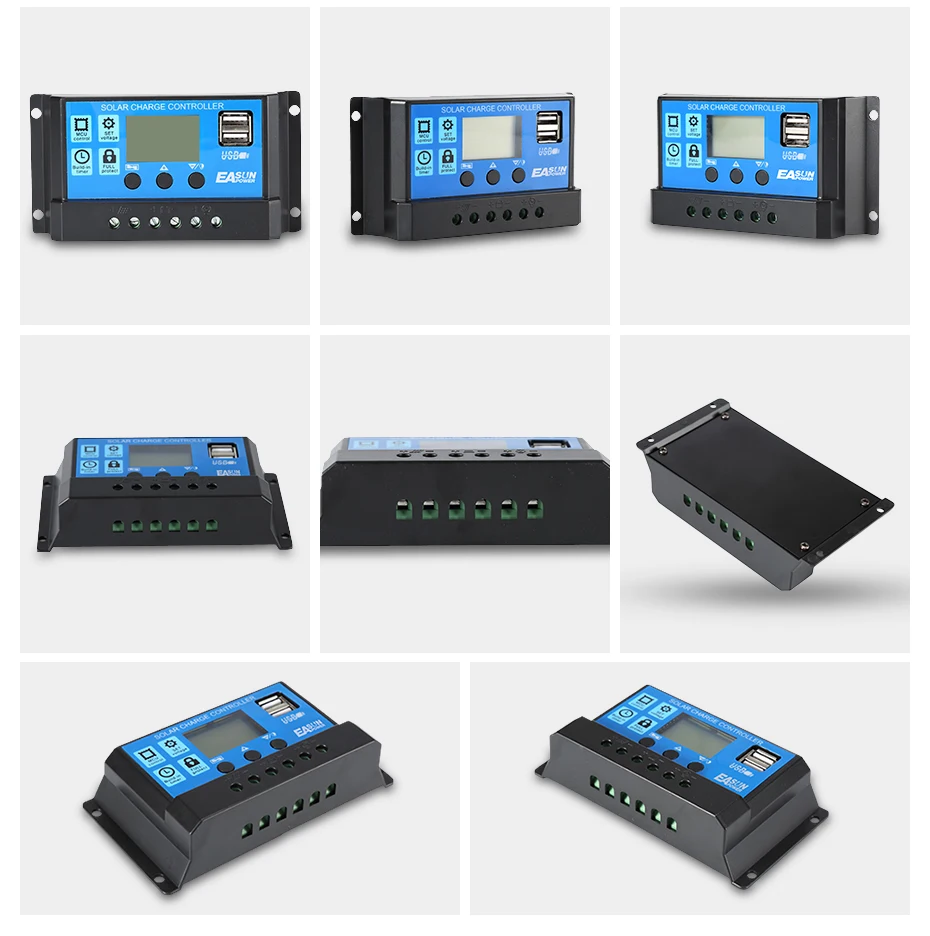

Efficient Solar Controller 12V 24V 60A 50A 40A 30A 10A Solar Voltage Regulator P

60A Solar Panel Charge Controller 12V 24V 2 USB 10A 20A 30A 40A 50A 60A Solar Controller Battery Charge Regulator PWM controller

60A Solar Panel Charge Controller 12V 24V 2 USB 10A 20A 30A 40A 50A 60A Solar Controller Battery Charge Regulator PWM controller

Specifications：

Features of Solar Panel Controller

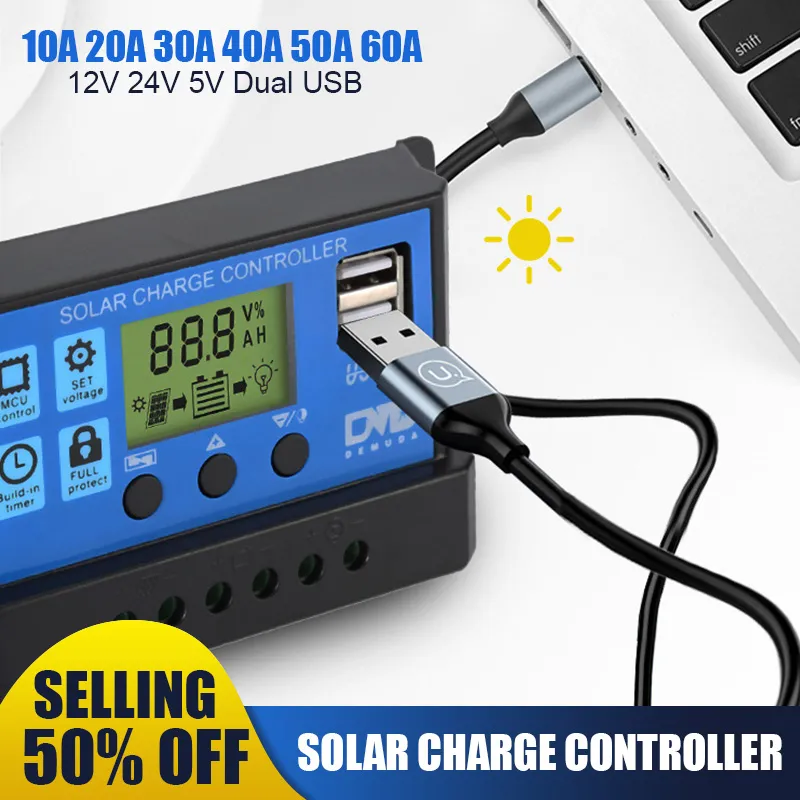

1. Upgraded version of solar panel controller: Compatible with 12V 24V system. This solar charge controller helps you automatically manage the work of the solar panels and batteries in your solar system using a built-in industrial microcontroller. No need to reset when the battery runs out, because it remembers various parameters set by the user. You can also charge your phone, tablet, PC with dual USB outputs up to 5V/2.5A.
2. Safe to use: Equipped with overcurrent protection, short circuit protection, reverse connection protection, low voltage, overcharge protection, with full 3-stage PWM charging management. This 30A solar charge controller will help you safely increase system efficiency and extend battery life.
3. LCD Display: The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations, and you can use the controller in different places such as home, industry, and business.
4. Multiple electrical protections: Built-in over current protection, short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the controller, providing reliable protection for your equipment.
5. Good heat dissipation: Double MOSFET reverse current protection, low heat generation, all electronic components will heat up during the working process, it is best to shade them for better heat dissipation, and avoid direct sunlight or humid places.

MPPT Boost Wind & Solar Hybrid Controller

Voltage：12/24V AUTO
Rated Wind Power：100W-1500W
Rated PV Power：100W-600W
Max input Voltage：≤50V
Current (DC):≤0.05A
Control Mode:Wind generator MPPT boost ,PWM dump load,PWM Over current Limiting function
Output Working Mode(Mode):
Display r:LCD display,
Protection Type:Solar Reversed Charging protection, Battery open circuit protection, Battery anti-reverse connection protection protection, Over current and over voltage auto, Brake protection, Over load protection,etc.
Cooling Mode:aluminium profiles Heat dissipation and self-cooling
Working temperature :-25℃~+80℃
Weight :2.35kg

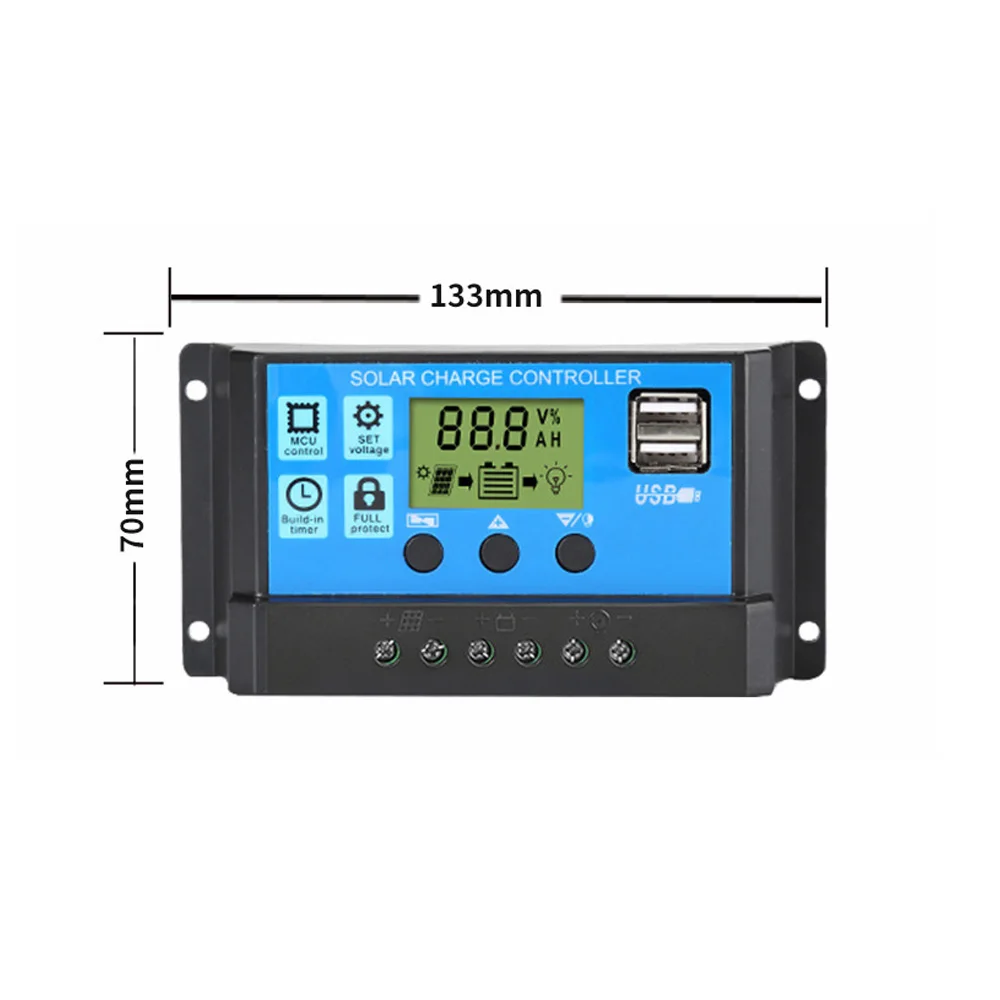

Controller Size/167mm*145.5mm*61.8mm

Packing List

1. 1 piece PWM controller.

FEATURES:

The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations, and you can use the controller in different places such as home, industry, and business. Built-in over current protection, short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the controller, providing reliable protection for your equipment.

*The reverse order applies when deinstalling!
*An improper sequence order can damage the controller!

*All red color voltage X2 ,while using 24V system.

*This solar controller is not waterproof ,please install it indoor or out of the rain

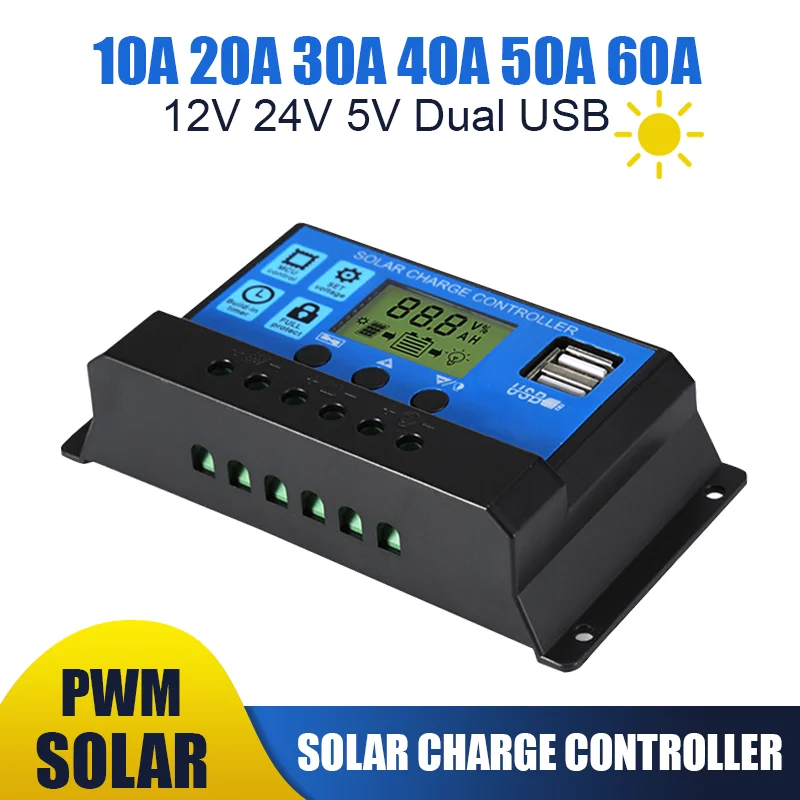

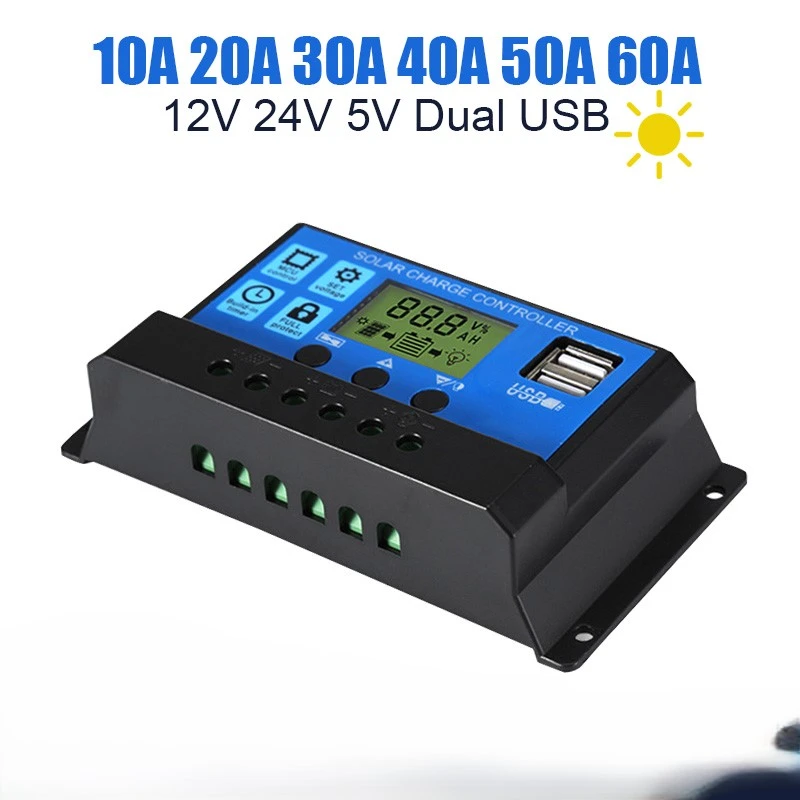

There are optional 10A 20A 30A 40A 50A 60A model:

10A:if your battery is 12V ,the max solar panel input is 25V 120W
if your battery is 24V ,the max solar panel input is 50V 240W
20A:If your battery is 12V, the max solar panel input is 25V 240W
if your battery is 24V, the max solar panel input is 50V 480W
30Aif your battery is 12V ,the max solar panel input is 25V 360W
if your battery is 24V ,the max solar panel input is 50V 720W
40A:if your battery is 12V ,the max solar panel input is 25V 520W
if your battery is 24V ,the max solar panel input is 50V 1040W
50A:If your battery is 12V, the max solar panel input is 25V 650W
if your battery is 24V, the max solar panel input is 50V 1300W
60Aif your battery is 12V ,the max solar panel input is 25V 780W
if your battery is 24V ,the max solar panel input is 50V 1560W
