• Powerful Intel Core i5 Processor :Experience superior performance with the Intel Core i5 processor, ensuring smooth operation and fast processing speed for your desktop.

• Dual-channel Memory Support :This motherboard supports dual-channel memory, providing a total capacity of 32GB (2*16GB) for efficient multitasking and enhanced system performance.

• DDR4 Memory Type :Equipped with DDR4 memory type, this motherboard ensures high-speed RAM operations, enhancing your computer’s overall performance.

• LGA 1700 Socket Type :Designed with LGA 1700 socket type, this motherboard provides a secure and reliable connection for your processor, ensuring optimal system operation.

• M.2 (NVMe) Storage Interface :The M.2 (NVMe) storage interface allows for fast data transfer and improved system performance, making your computer more efficient.

• PCI-E 4.0 Support :With PCI-E 4.0 support, this motherboard ensures high-speed connectivity between devices, enhancing your computing experience.

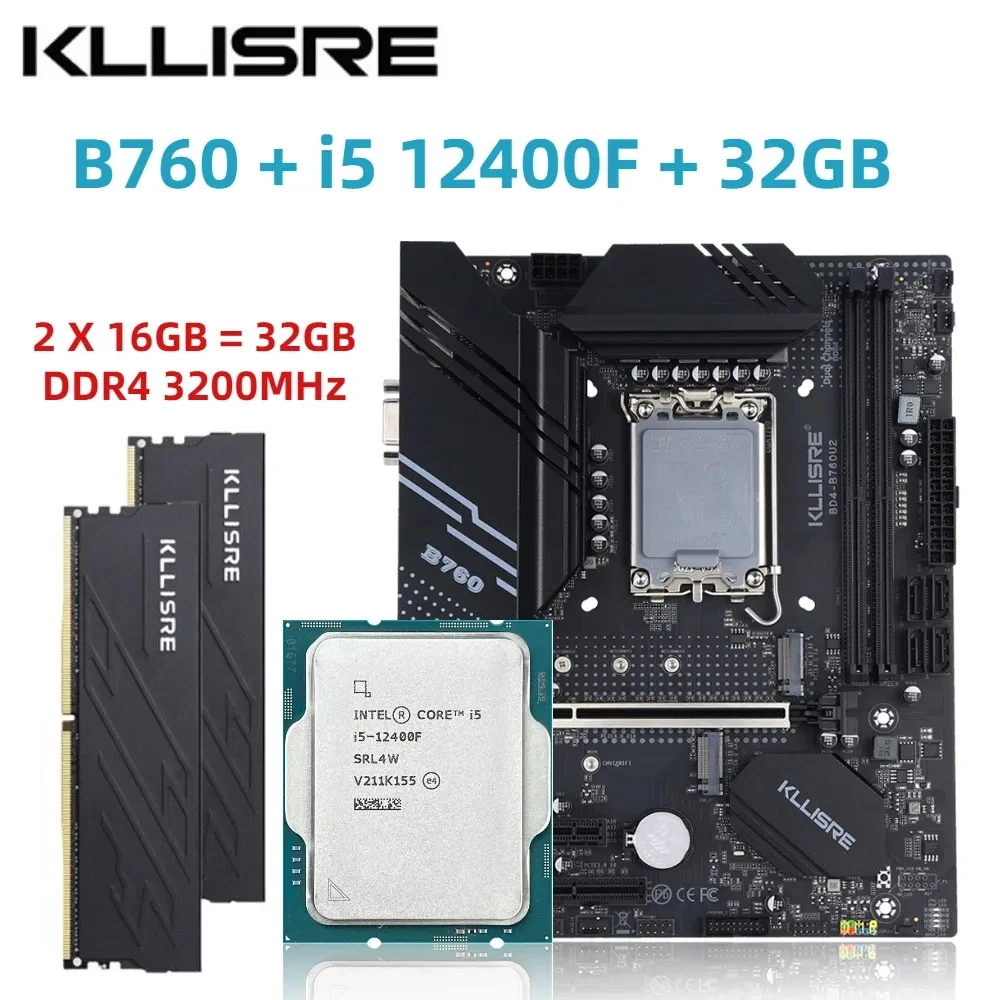

Kllisre B760 Kit Core i5 12400F 2*16GB = 32GB Memory DDR4 3200 Desktop RAM LGA 1700 Motherboard Set

CPU:

Processor Series: Core i5 12400F SRL4W(6 cores/12 threads)

Main frequency: 2.5GHz

Socket type: LGA 1700

3rd level cache: 18MB

Power consumption: 65W

Memory:

Brand: KLLISRE

Chip: SEC / HY/ MIC and others (ship at random)

Type: Desktop Memory

Frequency: DDR4 3200MHz

Capacity: 32GB (2*16GB)

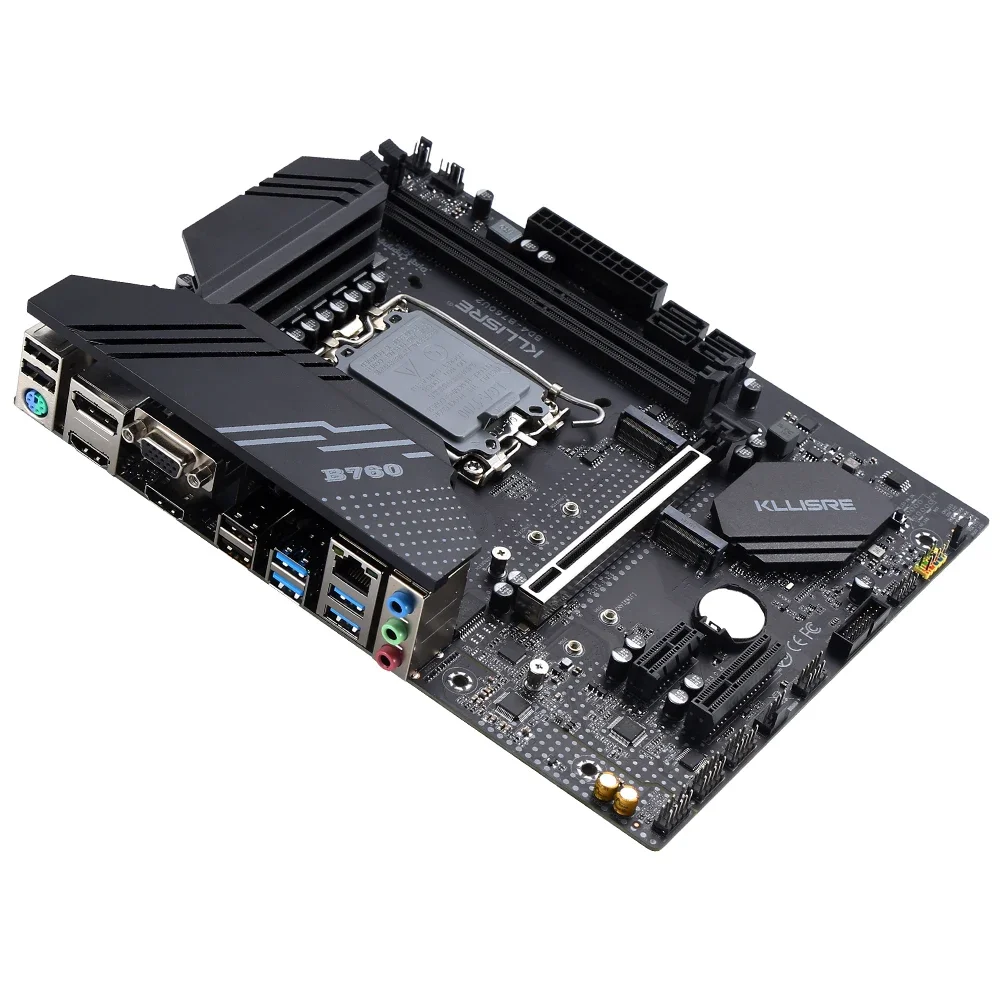

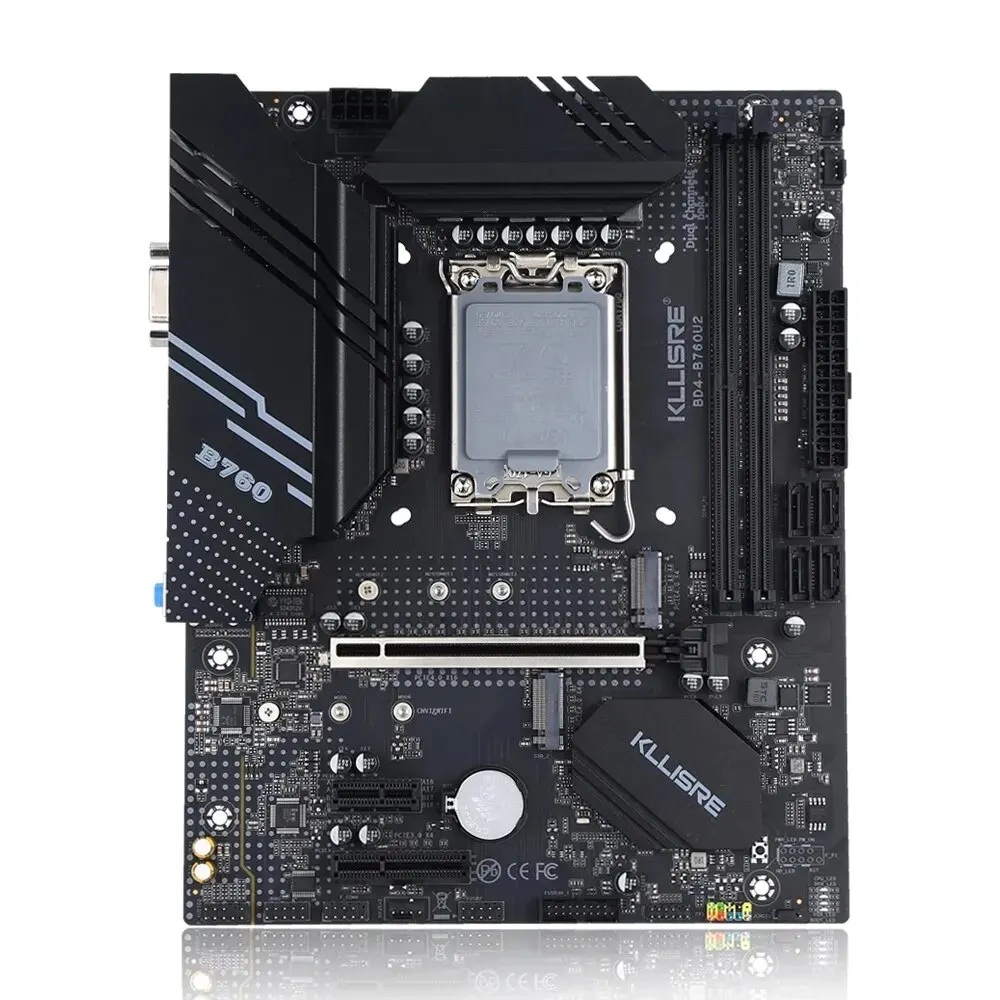

Motherboard:

Brand:Kllisre

Item type: b760 motherboard

Main Chip: B760

Socket Type: LGA 1700

Graphics Card Slot:1*PCI-E 4.0×16 ,1*PCI-Ex1 ,1*PCI-E 4.0×4

Expansion Slot:NVME PCI-E 4.0×4 M.2

PCB Layers:6

Ethernet: Gigabit

CPU Type: LGA 1700

CPU supported: 12/13Generation Series Processor

Memory type supported: 2400/2666/3200mhz Desktop Memory

Memory Slot: Dual channel

Memory Capacity Peak: 32Gx2 DDR4

SATA Interface:SATA3.0*4

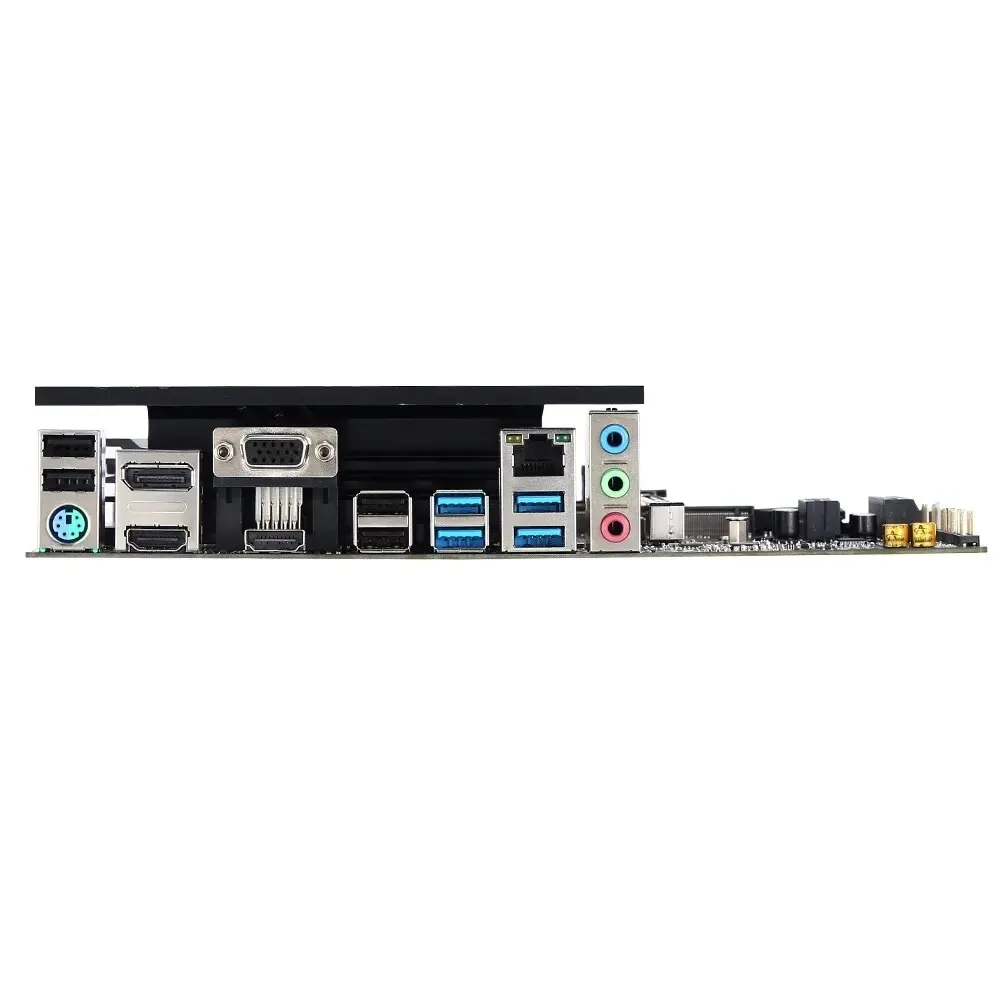

USB Interface: USB3.2×4 USB2.0x4(not including expansion)

Size: 190x240mm

Note :

1:Please allow 1-3mm differs due to manual measurement.

2:Due to the different display and different light, the picture may not show the actual color of the item.Thanks for your understanding.

3:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

4:We show photos of motherboard, pictures are for reference only, subject to our available products.

Q&A:

Q: Does this motherboard support M.2 SSD? How many warranty can you provide for this motherboard kit?

A: This motherboard can support NVME M.2 SSD. We provide one year warranty for this motherboard.

Q: Should I use it with my video card?

A: Yes, it needs to be used in conjunction with a discrete graphics card, the processor does not come with integrated graphics.

Product has been tested for working ability before sending, if you encounter problems when testing, please review the following steps, it will help you solve problem.

1. Wipe the gold fingers of the memory and the metal contacts on the back of the processor with an alcohol cotton ball (to rule out oxidization causing unrecognized problems).

2. Pls check the power supply cable is installed well on the motherboard, you need to install both 24 pin and 8 pin on the motherboard. the power pin is black color, pls make sure that you connect correctly.

3. Please make sure that the power supply, video card and other accessories you use to test the product are working properly.

4. Please make sure the cable is installed well between the VGA/HDMI port and monitor.

If you still encounter problems, please contact us and we will help you.

You can also go to the Kllisre Official Store to contact customer service and we will help you.

4.0 High speed M.2

Equipped with two 4.0-rate NVME M.2 interfaces. Write andread data without delay, not stuck. NVME(PCIe) M.2 is currently the fastest and most stable data transfer rate. Data transfer rates up to 64Gbps/s. LGA 1700 CPU Socket

Supports 12th and 13th CPUs. Experience the strength of a new generation.

2.5G Gigabit Ethernet. DDR4 Dual Channel

Maximum memory frequency 3600MHz Dual channel motherboard.

Support up to 64GB. Support XMP up to 4200MHz

Very thick

The use of 10-layer PCB board synthesis, the reason for the durability is to use materials

Powerful power supply

The main board uses a 10-phase power supply and rejectsvoltage loads. This product adopts all-solid-state battery,

which has good safety, high energy density,strong cycle performance and long service life. Heat dissipation design

Alloy material for heat dissipation. High-end customization shows style.

SATA 3.0*4

Data transfer speed is 6Gbps/s

PCI X16 4.0

Support PCIe X1 3.0

Support PCIe X4 4.0
