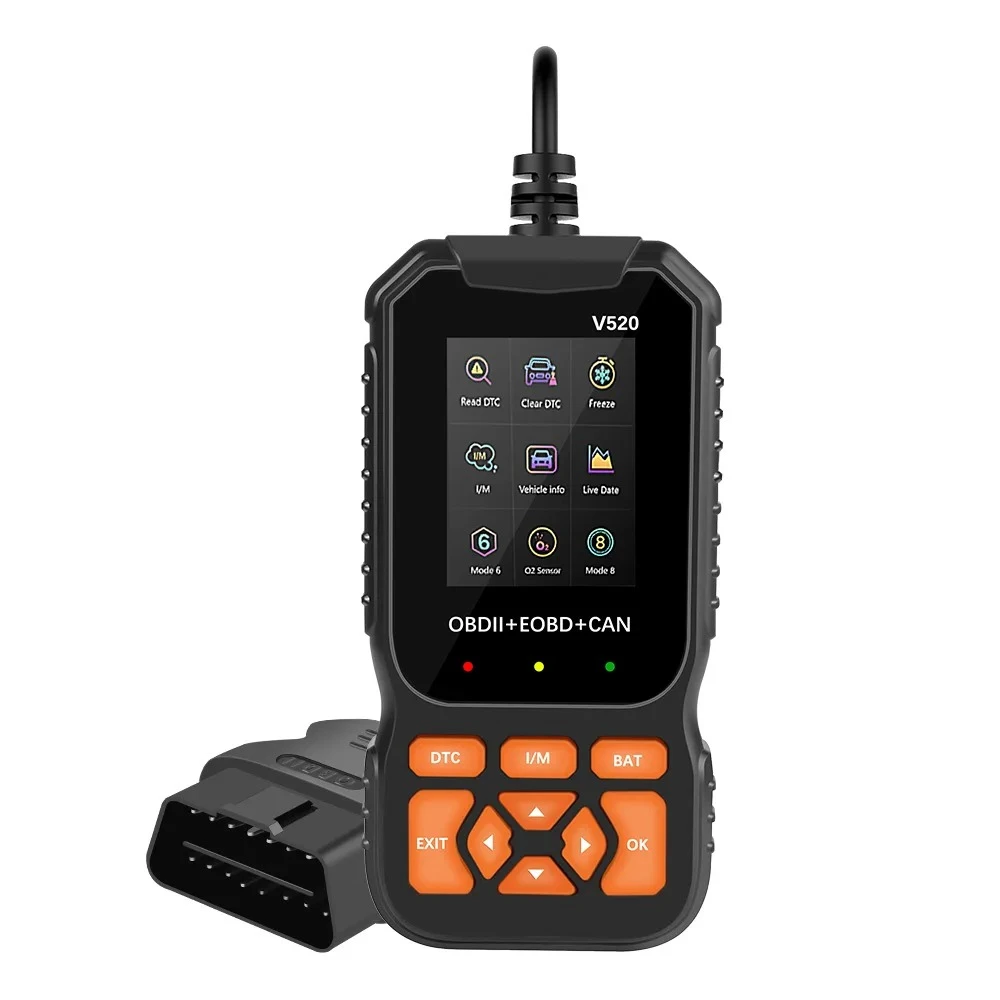

Professional Car Diagnostic Tool OBD2 Scanner Automotive DTC Lookup Code Reader Auto Engine System Lifetime Free

Save 50%

(0)

19 In Stock

€36.90~~€73.80~~

Color: :

Quantity

Total price: €73.80

Tax: incl.

Shipping cost: Free Shipping

Details description
Technical parameters: Main control chip: APM32E103VET6, LQFP100 Working voltage: DC 9V~16V Working current: 36mA~54mA Standby current: 40mA Operating environment: -30~70 ℃ Storage temperature: -30~70 ℃ 1.V520 Function: Diagnosis of automotive engine faults Car engine fault light clearing Car freeze frame I/M ready status Vehicle information reading Real time data flow Car battery voltage reading Mode 6 detection Oxygen sensor testing Mode 8 test Fault code query Code scanning and printing function 35901 fault code library Color display 2.8 inches 2. Supported protocols SAE J1850 PWM（41.6 Kbaud） SAE J1850 VPW（10.4 Kbaud） ISO 9141-2（5 baud init,10.4 Kbaud） ISO 14230-4 KWP（5 baud init,10.4 Kbaud） ISO 14230-4 KWP（fast init,10.4 Kbaud） ISO 15765-4 CAN（11bit ID,500 Kbaud） ISO 15765-4 CAN（29bit ID,500 Kbaud） ISO 15765-4 CAN（11bit ID,2500 Kbaud） ISO 15765-4 CAN（29bit ID,250 Kbaud） 3. Supported Vehicle Data Reading error diagnostic codes Clear fault codes (clear error codes and turn off MIL) Engine RPM Calculated load value Cooling liquid temperature Fuel system status Vehicle speed Short term fuel situation Long term fuel situation Intake manifold pressure Fuel injection lead time Intake temperature Air flow velocity Absolute position of throttle valve Oxygen detection voltage associated with short-term fuel status Fuel system status Fuel pressure Monitoring of fuel consumption, etc Note: The number of data items supported varies depending on the model year, subject to actual support. 5.Support for ten languages 1.English 2.German 3.French 4.Spanish 5.Italian 6.Russian 7.Dutch 8.Chinese 9.Japanese 10.Portuguese Package Included: 1 x Car Diagnostic Tool 1 x English Manual

Details description

Technical parameters:

Main control chip: APM32E103VET6, LQFP100
Working voltage: DC 9V~16V
Working current: 36mA~54mA
Standby current: 40mA
Operating environment: -30~70 ℃
Storage temperature: -30~70 ℃

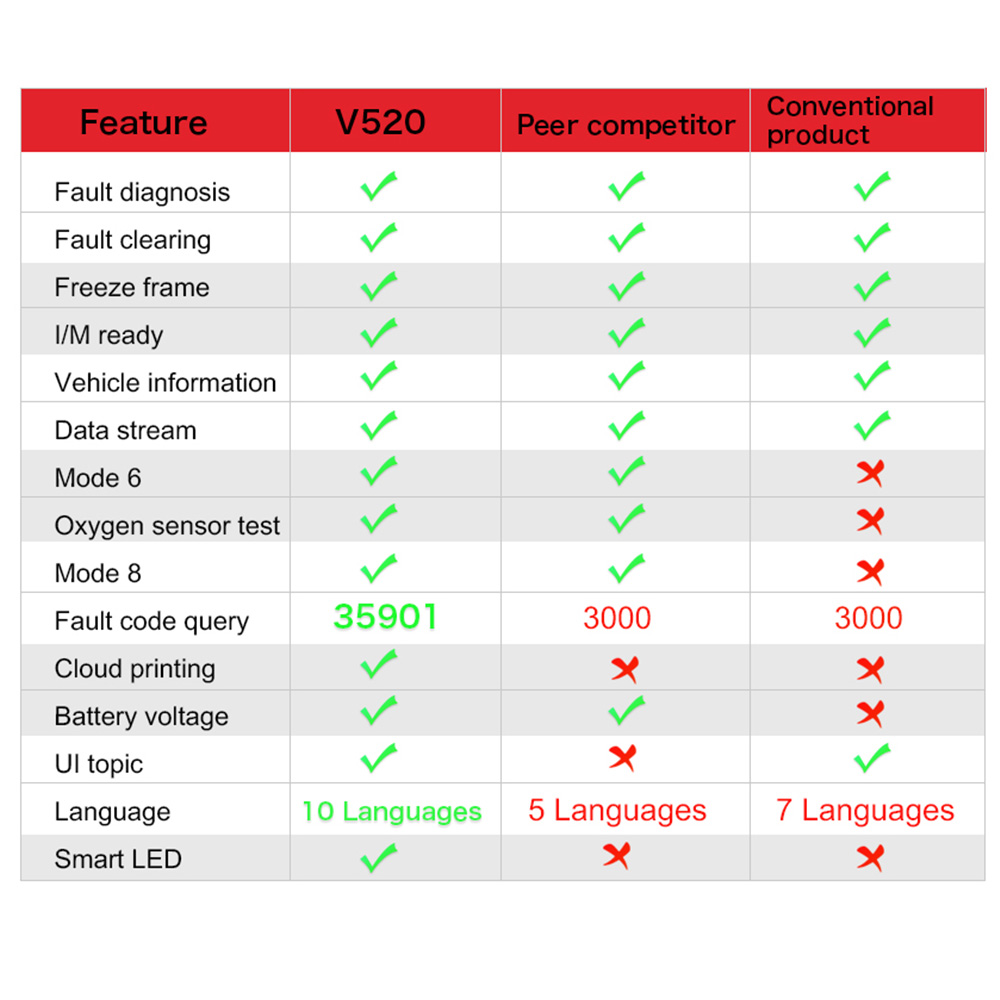

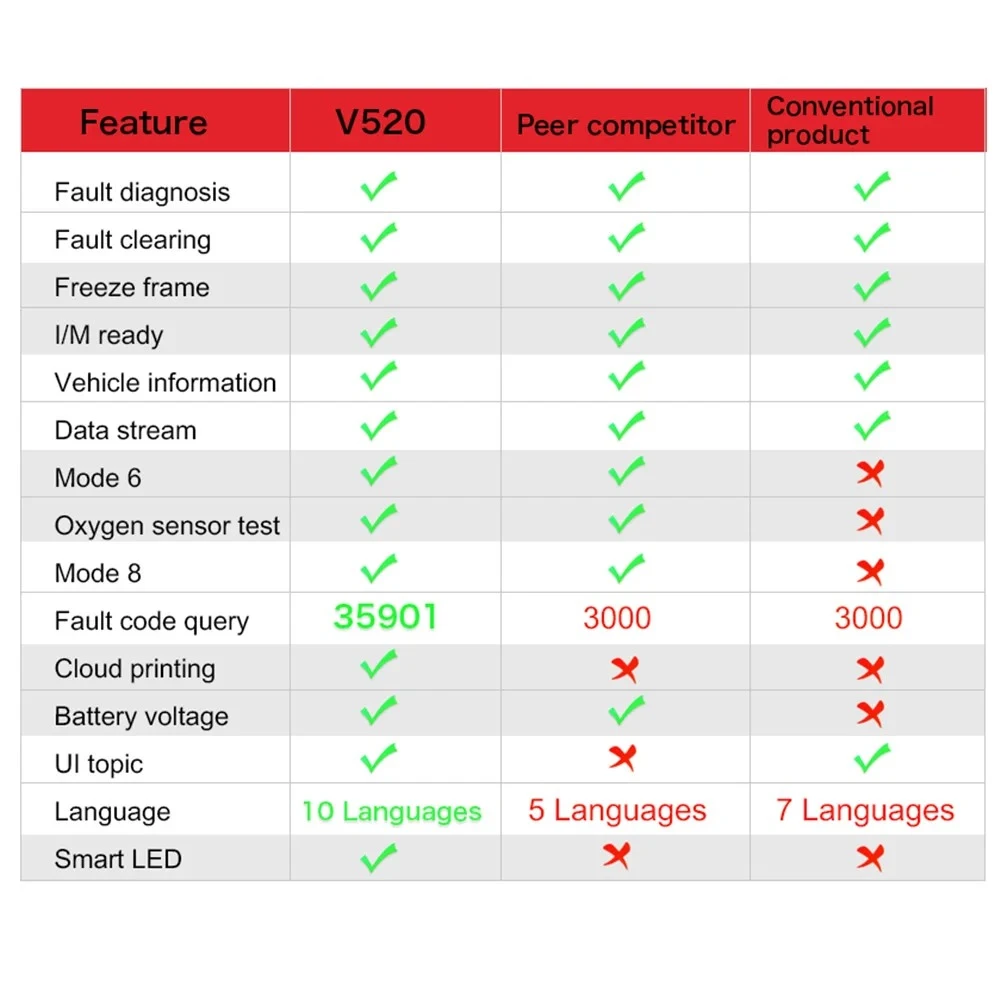

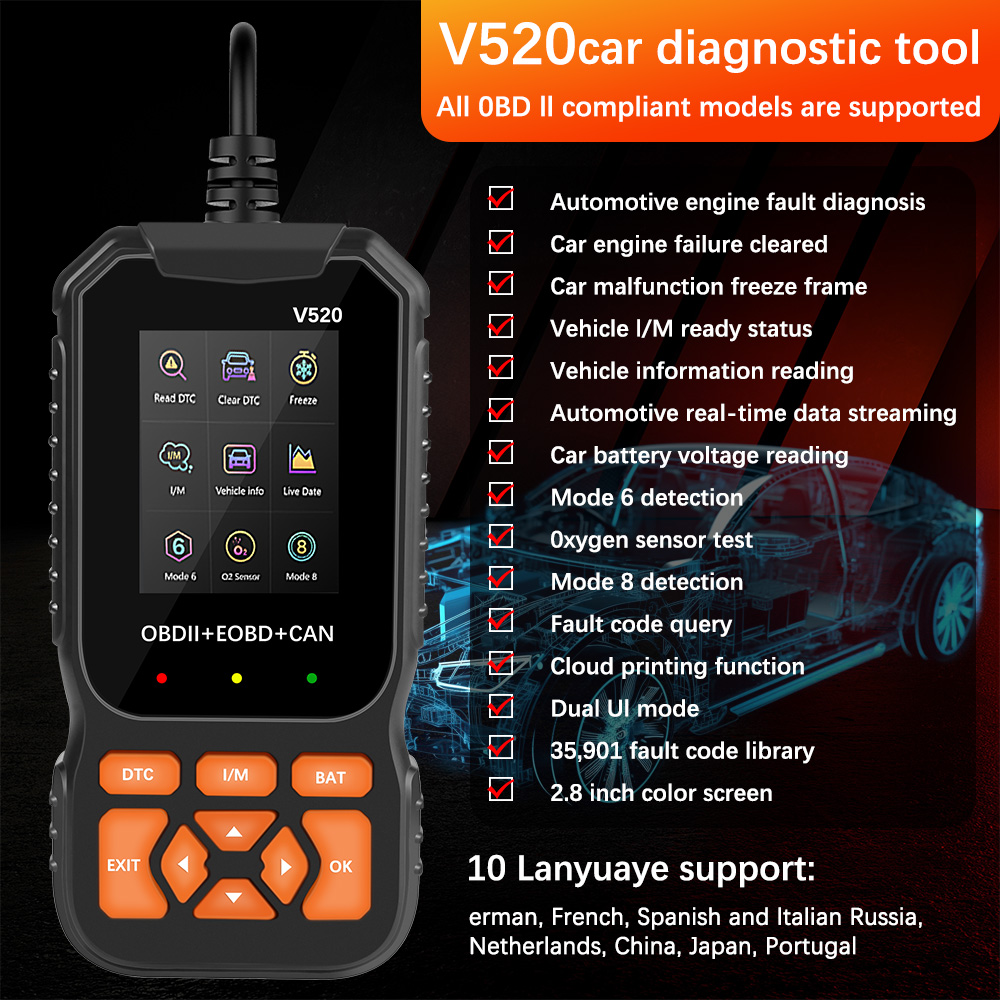

1.V520 Function:

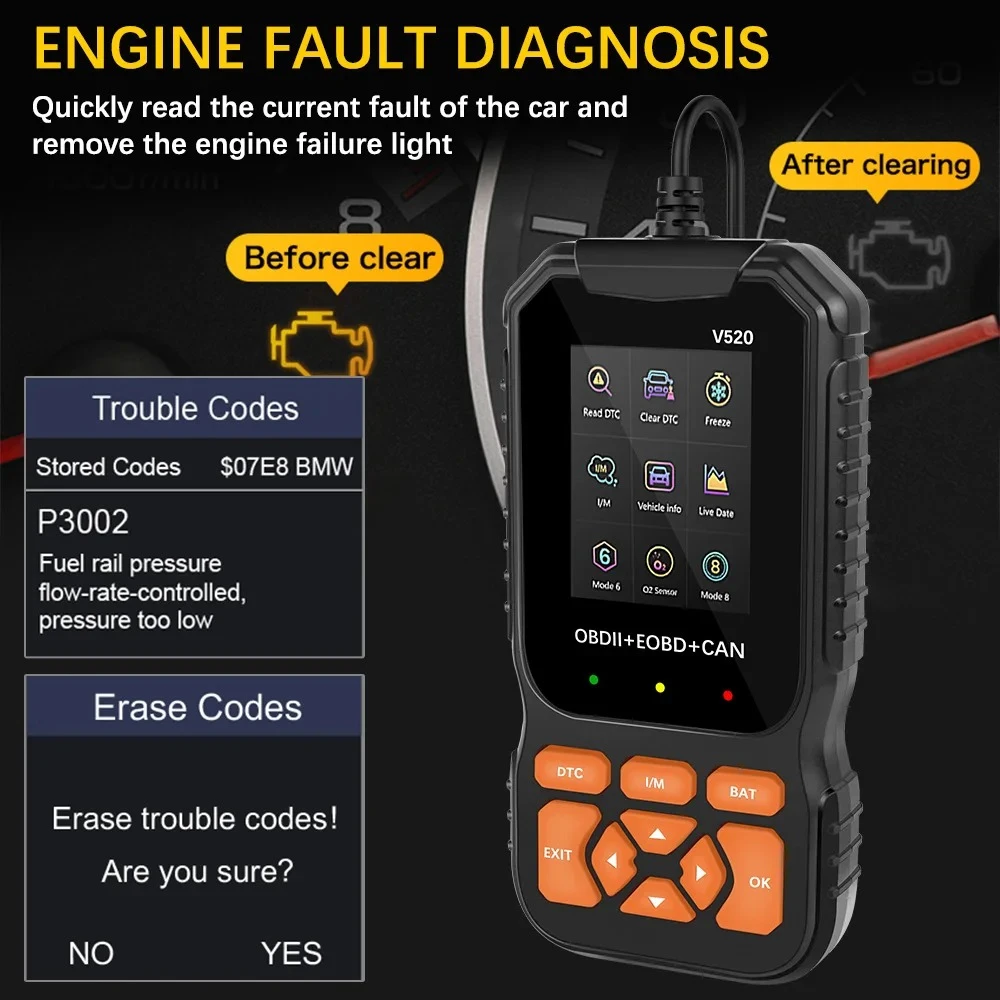

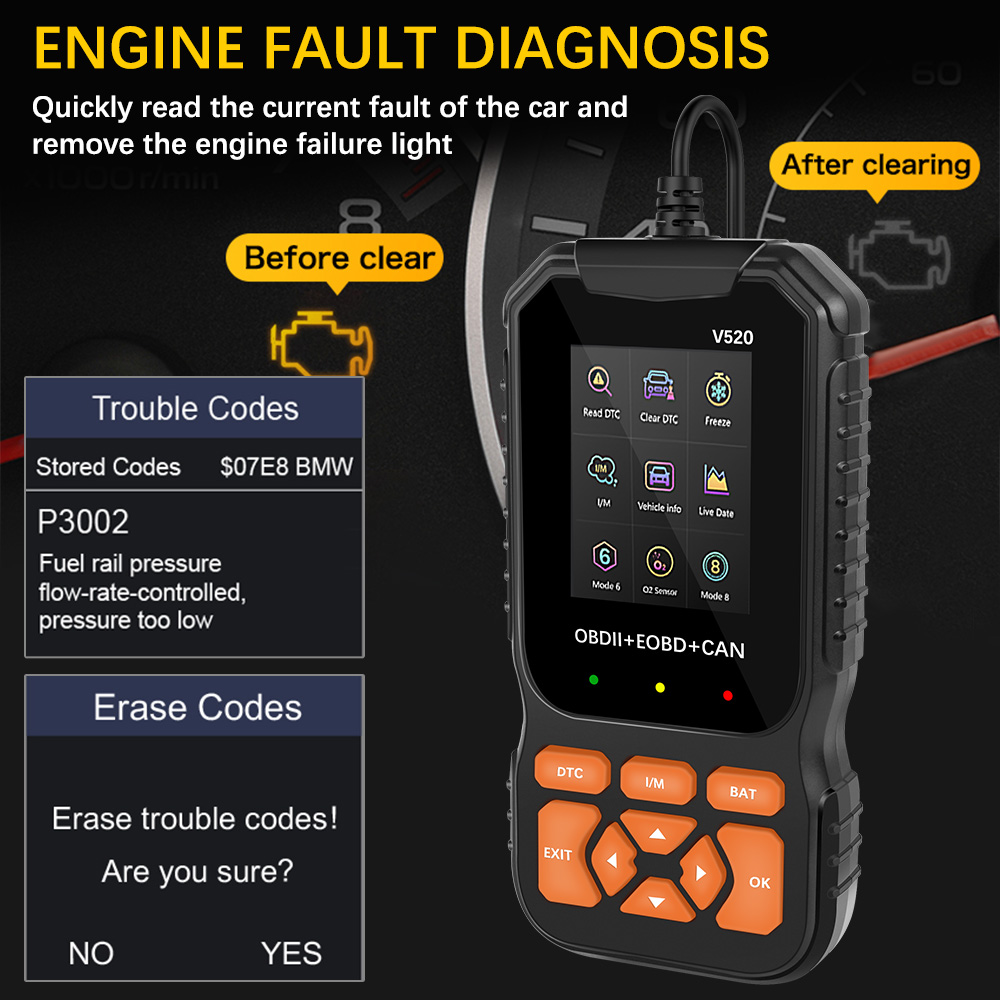

Diagnosis of automotive engine faults
Car engine fault light clearing
Car freeze frame
I/M ready status

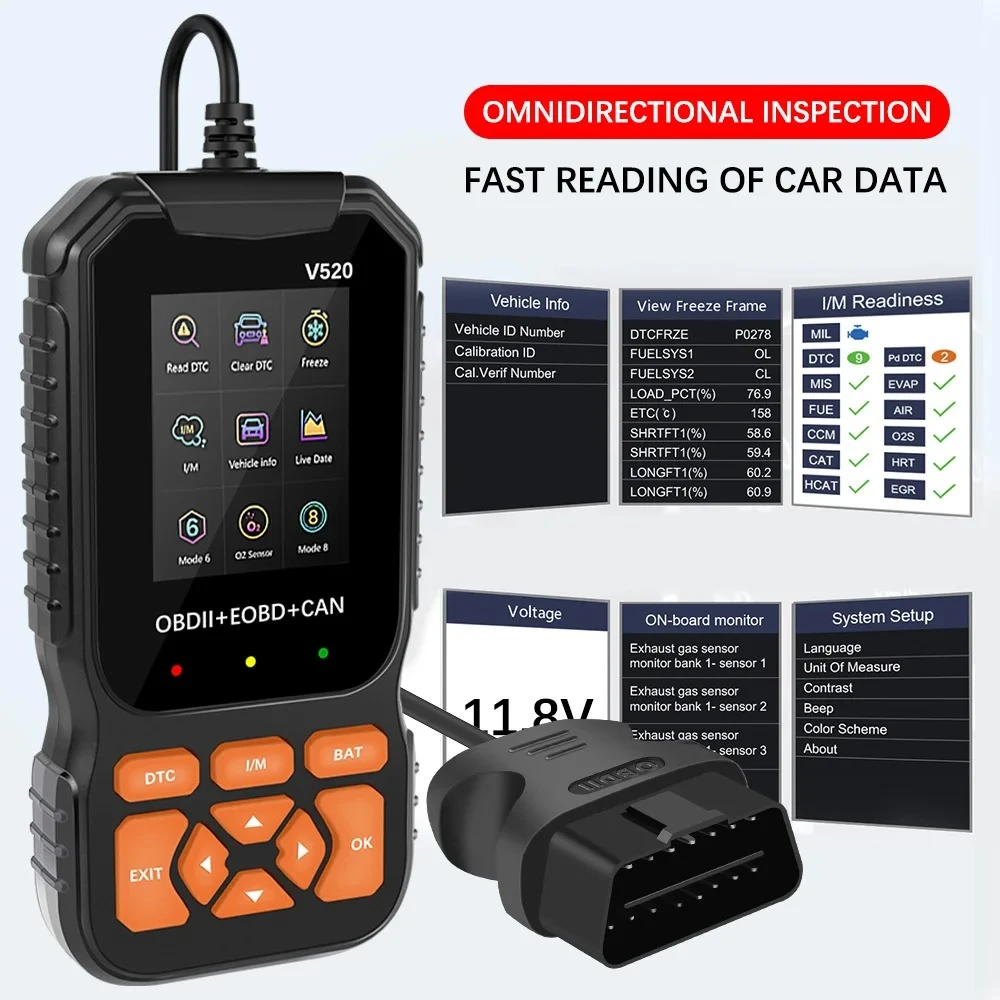

Vehicle information reading

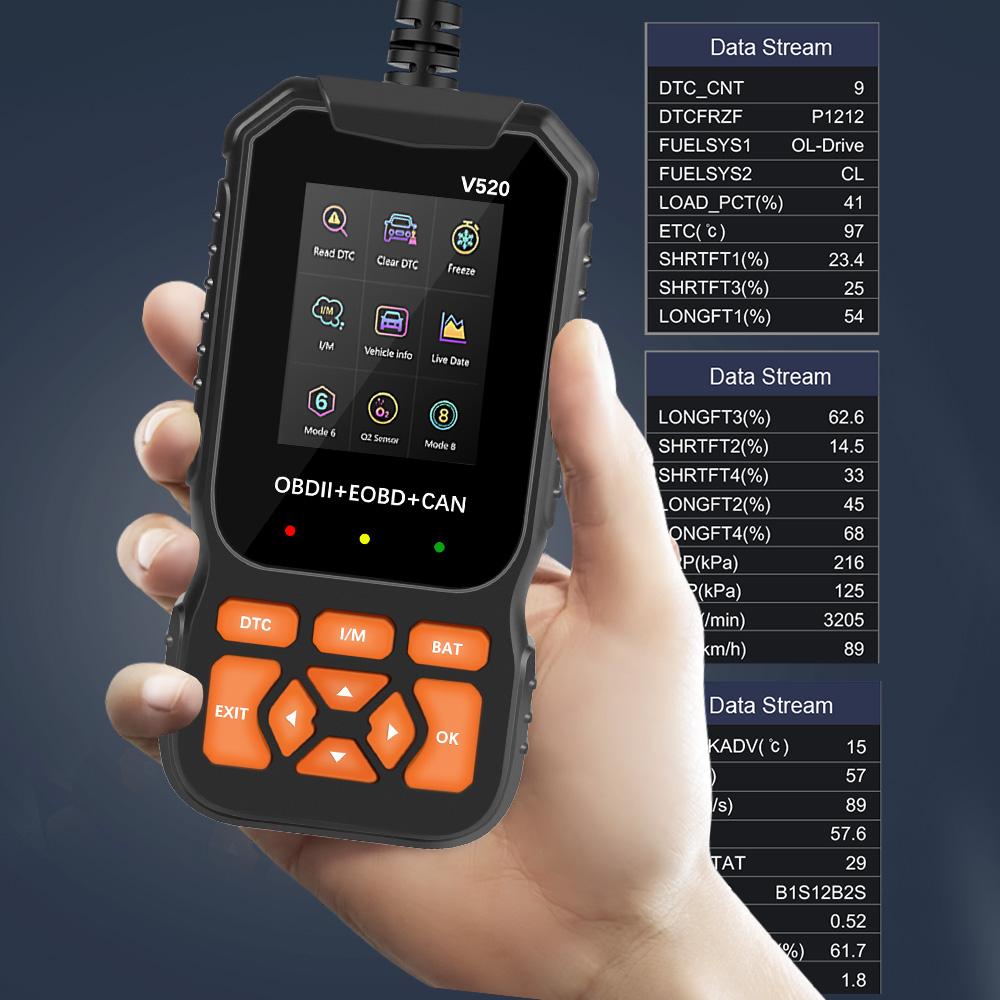

Real time data flow
Car battery voltage reading
Mode 6 detection
Oxygen sensor testing
Mode 8 test
Fault code query

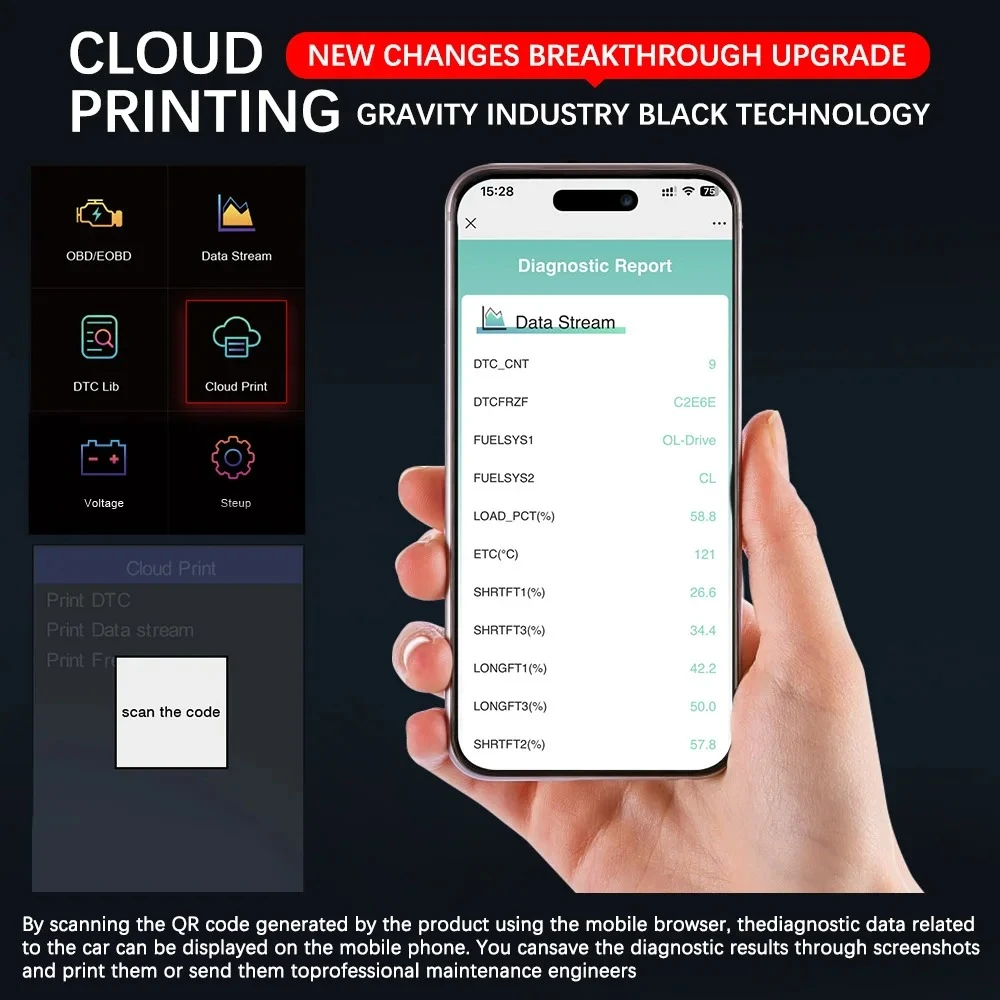

Code scanning and printing function
35901 fault code library
Color display 2.8 inches

2. Supported protocols

SAE J1850 PWM（41.6 Kbaud）
SAE J1850 VPW（10.4 Kbaud）
ISO 9141-2（5 baud init,10.4 Kbaud）
ISO 14230-4 KWP（5 baud init,10.4 Kbaud）
ISO 14230-4 KWP（fast init,10.4 Kbaud）
ISO 15765-4 CAN（11bit ID,500 Kbaud）
ISO 15765-4 CAN（29bit ID,500 Kbaud）
ISO 15765-4 CAN（11bit ID,2500 Kbaud）
ISO 15765-4 CAN（29bit ID,250 Kbaud）

3. Supported Vehicle Data

Reading error diagnostic codes
Clear fault codes (clear error codes and turn off MIL)
Engine RPM
Calculated load value
Cooling liquid temperature
Fuel system status
Vehicle speed
Short term fuel situation
Long term fuel situation
Intake manifold pressure
Fuel injection lead time
Intake temperature
Air flow velocity
Absolute position of throttle valve
Oxygen detection voltage associated with short-term fuel status
Fuel system status
Fuel pressure
Monitoring of fuel consumption, etc
Note: The number of data items supported varies depending on the model year, subject to actual support.
