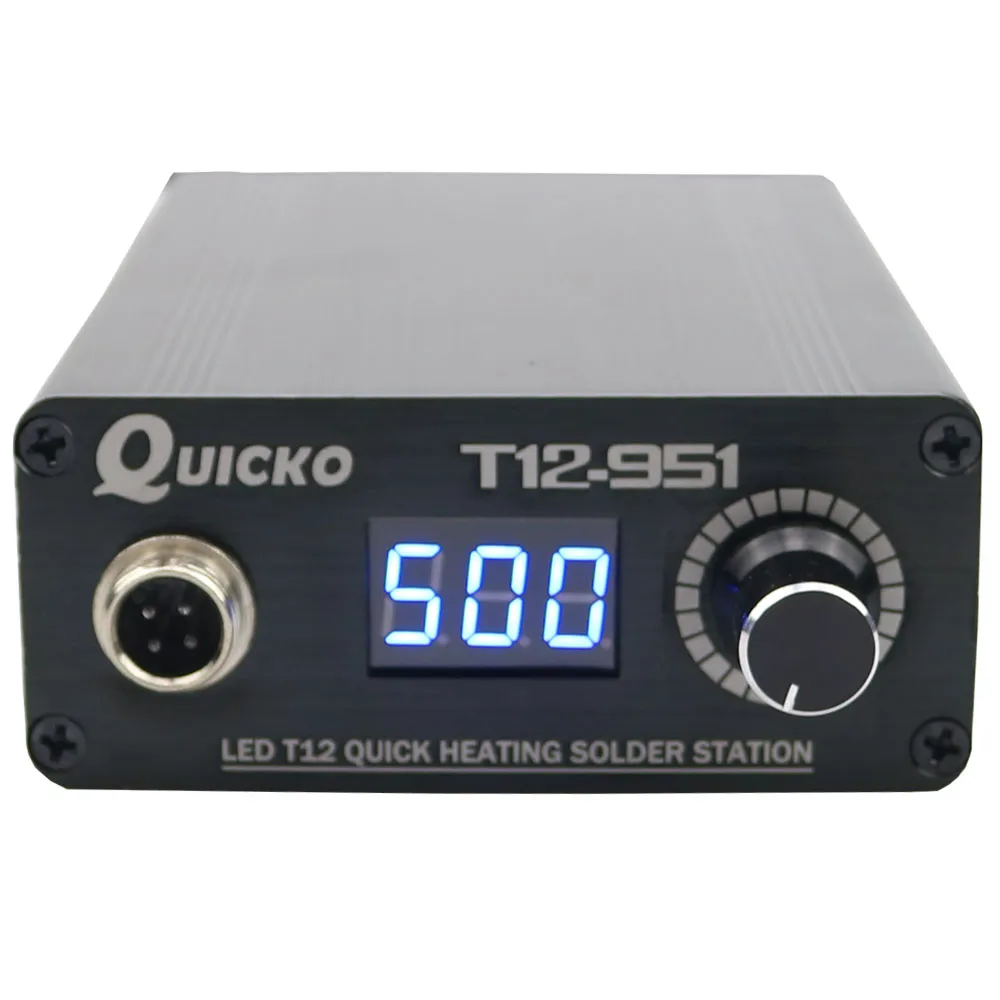

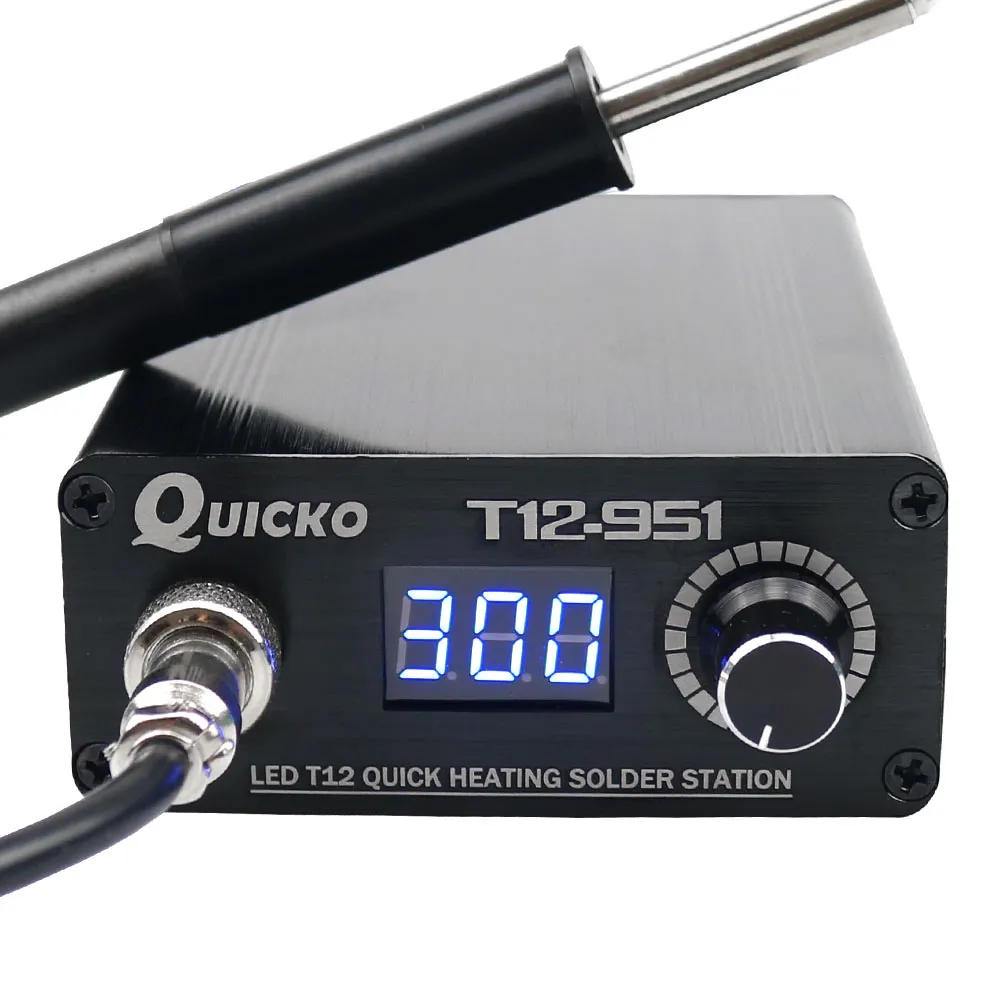

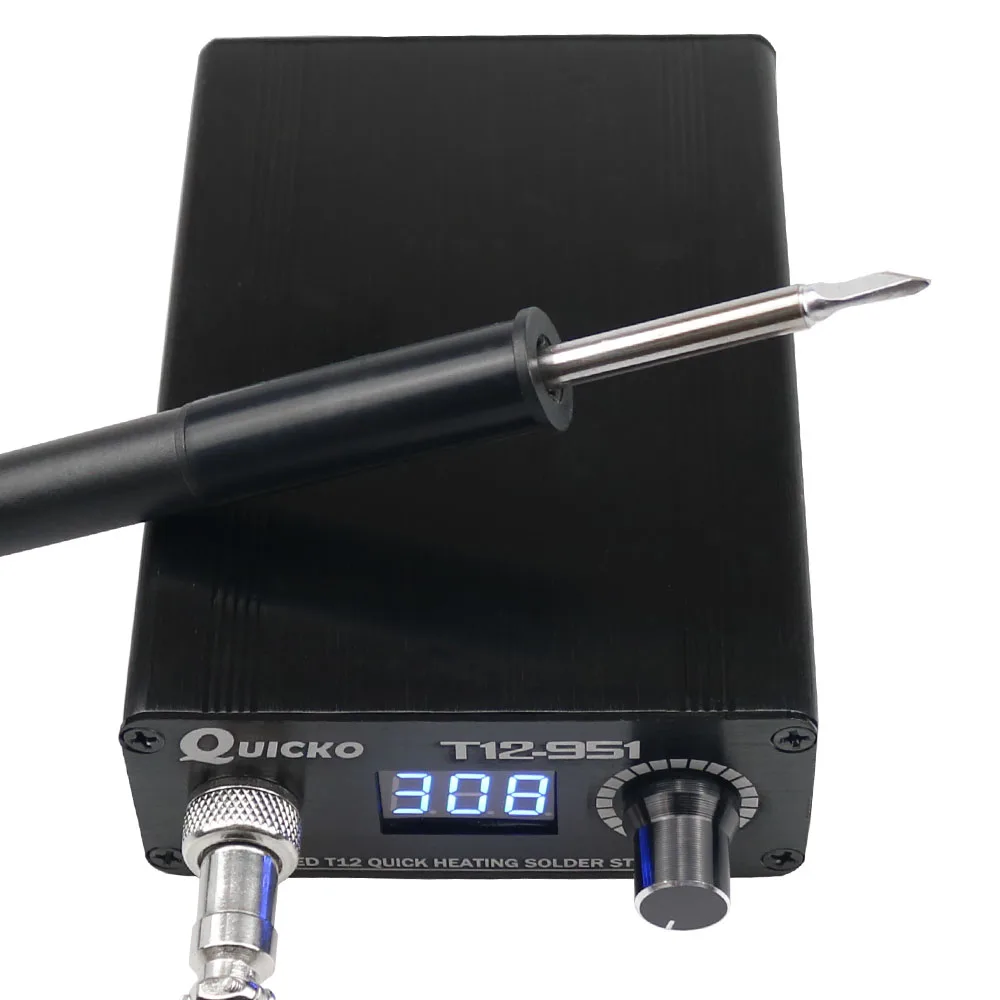

Quick Heating T12-951 LED Digital soldering station electronic Soldering Iron welding tool with P9 plastic handle

Quick Heating T12 soldering station electronic welding iron 2019 New version SC T12 LED Digital Soldering Iron T12-951 QUICK

NOTE:

This soldering station has NO HOT air gun!

NOTE: Iron tip do not work continuously in high temperatures, high temperatures work is easy to damage the tip!

Ordinary solder melting point is 183 degrees, and lead-free solder melting point is 227 degrees, usually, the welding temperature is 300-380 degrees, and 380 degrees is the temperature of the dividing line, higher than 380 degrees, iron head oxidation and loss is extremely fast, seriously affect the heating core life The Higher than 380 degrees temperature display will be beating, the higher the temperature, the greater the beating! Recommended in the 300-380 degrees for welding work, most of the work can be carried out, the temperature beating is normal, does not affect the use!

The soldering iron used in this soldering station is a brand-new soldering iron tip. Due to the unstable resistance of the new soldering iron tip, the temperature will jump or ERROR, which is normal. After several times of use, the stability will gradually stabilize. If you mind, please do not buy.

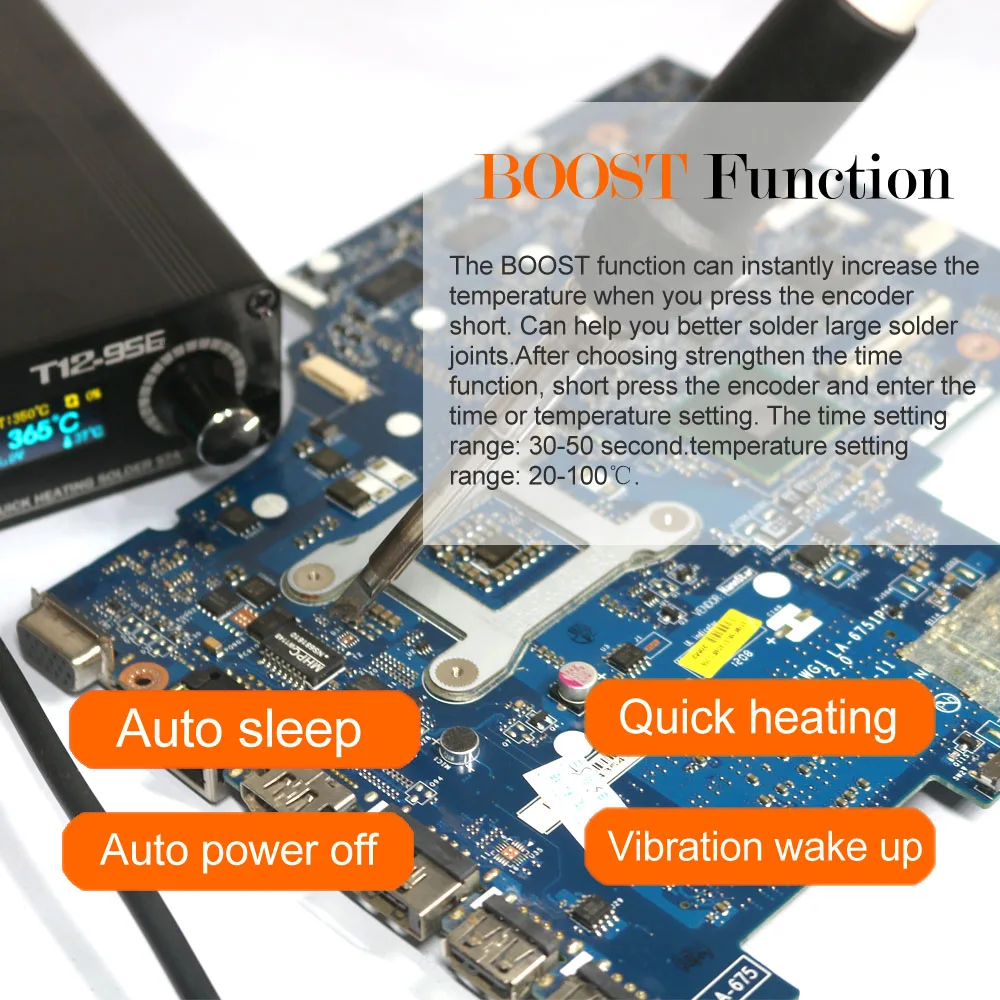

Function&Advantage

1. Quick Heating & temp control accurate

2. Auto Sleep & Auto power off

3. Raise the handle to wake up the host

4. Get higher temp by pressing the encoder

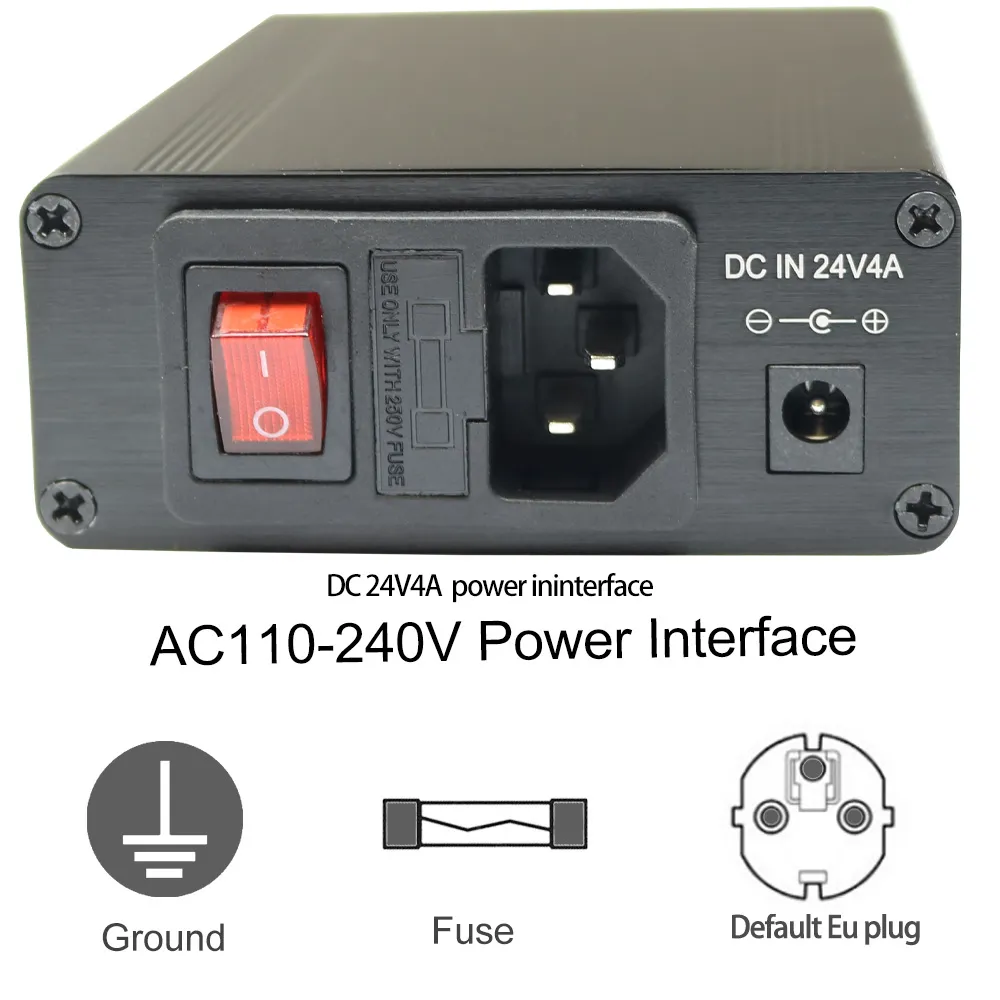

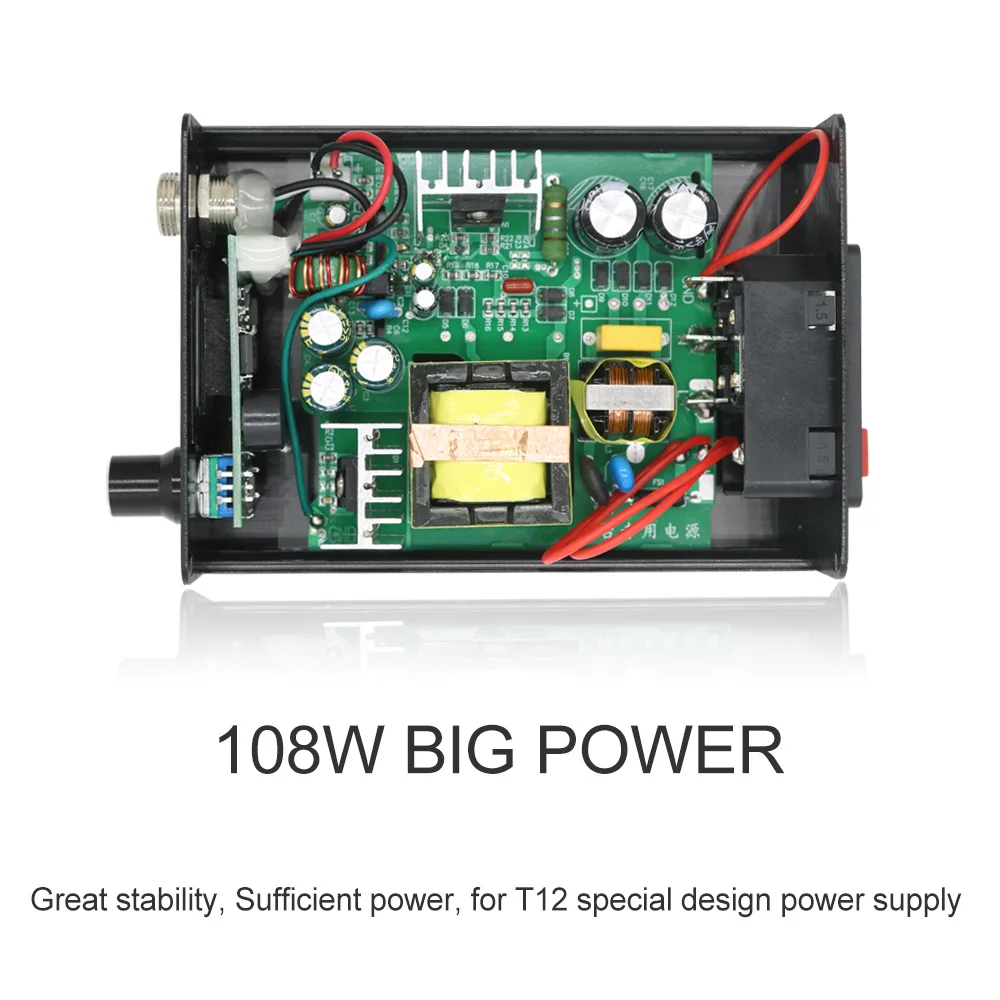

input: AC 110V-240V Power supply:24V 4.5A

Temp:200 C-450 C Tin melting time:<8s

Controller parameter setting mode:

(The default has been set, with no special requirements, please do not set up a random)

Press and hold the encoder button does not move → Turn on → Enter the parameter settings mode:

There are 12 menus available for setup,P00,P01,P02,P03,P04,P05,P06,P07,P08,P09,P10,P11.The digital display menu is 1.5 seconds, and then automatically displays the corresponding parameters of this menu,at the same time rotate left encoder is reduced, right is increased, Press it and automatically saves the currently set parameters. And then display the next menu for 1.5 seconds, and then display the corresponding parameters of this menu, and so on. When all parameters are set to automatically enter the normal heating mode.

Because each sets a parameter to save once, you can shut down at any time without having to set all the parameters (such as if you just want to set P01, set P01 after you can shut down and then boot into normal mode)

Menu item:

P00: restore the default parameters (0 or 1, the default value of 0,0 for not recovering, 1 for the recovery)

P01: Operational amplifier gain (200 to 350 times, step 1, default 230)

P02: Operational amplifier offset voltage (0 ~ 250mV, step 2, the default value of 100, refers to the tip to keep the room temperature operational amplifier inherent output voltage, according to my measurement this voltage varies greatly with temperature, different magnification Not the same, the higher the magnification, if you do not measure, please keep the default value)

P03: thermocouple ℃ / MV data (30 ~ 50, step 1, the default value of 41, refers to the thermocouple’s need to temperature how much voltage was increased by 1mV, according to the type of thermocouple self-calculation, if you do not understand, please keep Defaults)

P04: temperature adjustment step (0,1,2,5,10 degrees optional, 0 can lock the soldering iron temperature)

P05: sleep time (how long don’t not move into sleep) (0 ~ 60 minutes, step 1, 0 is to forbid the sleep function)

P06: Shutdown time (0 ~ 180 minutes, 0 ~ 30 step 1,30 ~ 180 step 10, 0 is forbidden shutdown function)

P07: temperature correction (+20 degrees, step 1) (due to NTC resistance in the chassis, the soldering station heat will lead to the detection of NTC temperature higher than room temperature, resulting in high temperature compensation of the thermocouple, soldering iron temperature is not accurate,or other causes the temperature is not accurate.If you set the other parameters are correct value but the temperature is still high or low, you can use this parameter correction.For example, to detect the displayed soldering iron temperature is 20 degrees higher than the actual value of this parameter Set to 20)

P08: wake mode (0,1, 0 in the shutdown mode can be rotated the encoder and also can shake the handle to wake up, 1 can only rotate the encoder wake up (Note: press the encoder can not wake up, can only rotate) )

P09: temperature increase mode to increase the temperature to adjustable (20 degrees to 100 degrees adjustable, adjust the pace of 10 degrees)

P10: temperature to increase the duration to adjustable (adjustment range of 10 seconds to 250 seconds, adjust the step 5 seconds)

P11: Parameter setting mode Auto save parameter and return to heating mode Function to active time adjustable (range 4 seconds to 60 seconds)

Installed Note:

1. Strictly reference shop tutorials, well insulated and grounded against static electricity.

2. Before the power test, carefully check whether the wiring is correct, whether Weld and short, full power test machine after confirmation.

3. connect 12-24V DC, if received more than 20V power supply,2017 new style product don’t need to remove anything!

4. When you configure the power supply voltage and current requirements themselves refer to the following table:

Power (third column) is determined by the voltage (first column), as long as the current reaches the minimum current (second column).

Measuring Machine normal, lights and display status:

1. Unplugged T12 tip, turn the light flashed off, and show SER, 1 second after the display 500.

2. T12 plug tip, boot light uniform flashing, indicating rapid heating from room temperature generally show the set temperature to rise, approaching the set temperature, strobe lights. Indicator is not flashing or intermittent flashes, indicating that the tip temperature reaches the set temperature or alternating temperature compensation.

When measuring machines on display digital bounce questions:

Because with the new T12 tip, the tip inside the heater did not burnt, it will be just a little jump start with warm, generally do not need special treatment, the natural use of 1-2 days basically not bounce up. If you need effective immediately, the general recommendation of the temperature to 350 ?-380 ?while heating to the point of tin iron head, burning off after 4-5 minutes, until the tip to cool before you can reboot! (1 no action can be repeated 2-3 times)

——————————————————————————————————————————————————————————————————————————–

Regarding the problem that the temperature displayed on the soldering station is not accurate with the actual temperature:

Please use the soldering iron tip temperature tester (please do not use a multimeter) to test the temperature. When the soldering station is working at low temperature (less than 280 degrees), the temperature displayed on the soldering station and the actual temperature of the soldering iron tip are only for reference , which is not accurate because They are affected by the surrounding environment. The surrounding environment will carry away heat, causing the soldering iron tip to lose some heat. If using a HB tip thermometer, pls make sure the soldering iron tip is suspended at the center of the temperature sensing line. If you are very strict with temperature, please do not buy this soldering station.

The problem that tin wire cannot be melted at 227 degrees.

The melting point is the melting point of the substance itself. When the temperature of the substance reaches the melting point of the substance, it is possible that the substance cannot be melted. For example, the melting point and freezing point of ice are both 0 degrees Celsius, and water does not necessarily freeze at 0 degrees Celsius. Since the temperature of the substance is affected by the surrounding environment, the actual melting point of the tin wire is higher than the melting point indicated by the tin wire. If the wire is placed in a thermostat tin furnace at 226 degrees Celsius, it is possible to melt in a sealed tin furnace. If it is wrapped around the soldering iron tip, it is impossible to melt. Because there is a gap between the tin wires, and the soldering station has a temperature difference, the soldering iron will lose some heat when it heats up, and the surrounding air will also absorb heat. The melting point of lead-free wire is 227 degrees Celsius, and the room temperature is low in winter. Under the premise of calibrating the temperature of the soldering station, at least 50 degrees Celsius should be increased to offset the heat absorbed by the air, so that the heat of the wire itself can be increased to 228 degrees Celsius.

About the wake of the handle

Please carefully understand the working principle of the vibration switch in the handle. The ball trigger switch built in the handle, the mounting direction of the ball switch and the rolling direction of the ball inside the ball switch need to vibrate the handle when the direction of the handle is consistent. For example, when the handle is vertical Please move the handle up and down. When swinging the handle up and down, please make sure that the ball inside the handle can trigger the SW wake-up mode, and the force needs to be slightly larger. When the handle is placed horizontally, please swing the handle left and right. Please swing the handle to an angle greater than 30 degrees, so that the ball inside the handle can trigger the SW wake-up mode.

About the soldering station showing of ERROR

If the ERROR is displayed, the handle or the tip is not installed properly. Please use a pair of pliers to push the tip into the innermost part of the handle. Then try rotating the tip to ensure that the tab of the tip is in good connection with the inner tab of the handle. If ERROR is still displayed and the light is always on when the tip or handle is installed, please contact us to get a solution. We encourage buyers to communicate with us to solve any problems. We will do our best for each buyer.
