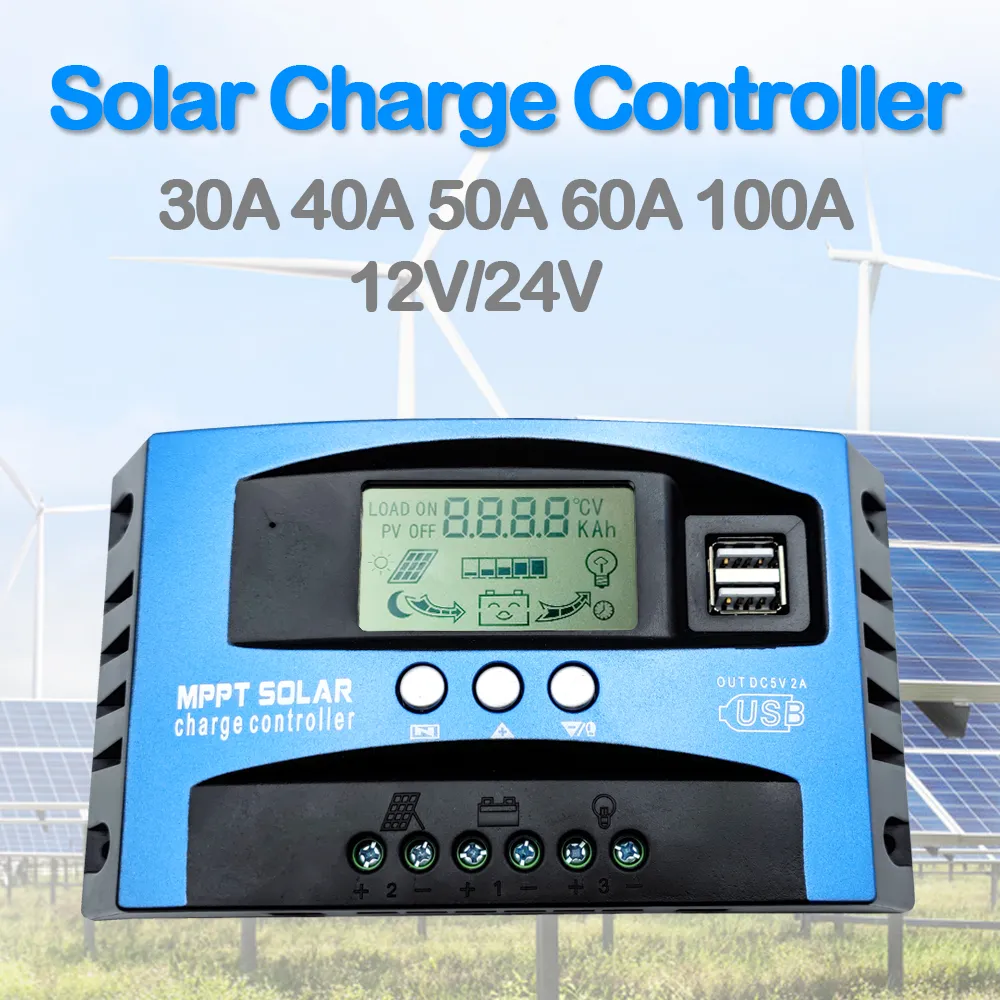

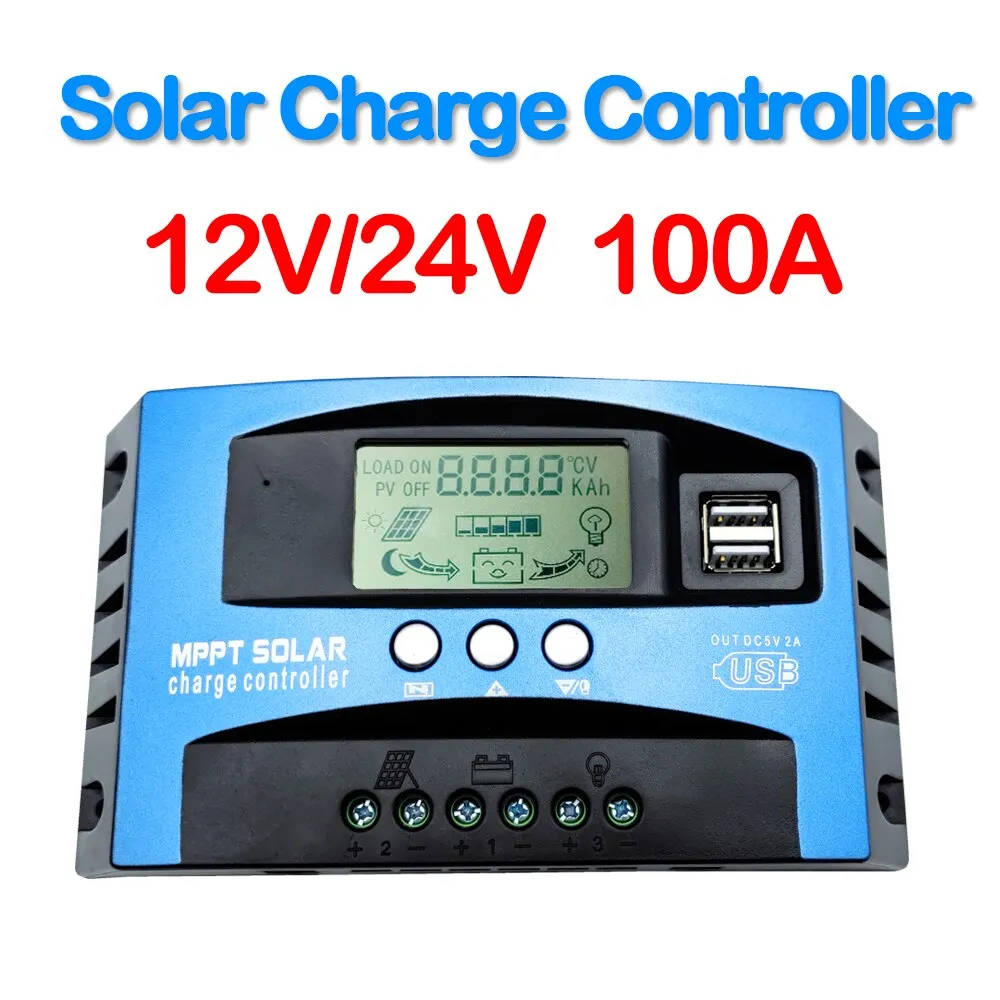

Y&H 100A 60A 40A MPPT Solar Charge Controller Dual USB LCD Display 12V 24V Solar Cell Panel Charger Regulator with Load

Save 35%

(2)

180 In Stock

€16.40~~€25.23~~

Color: :

Capacity :

40A
60A
100A

Quantity

Total price: €108.95

Tax: incl.

Shipping cost: Free Shipping

Details description
Y&H 100A 60A 40A MPPT Solar Charge Controller Dual USB LCD Display 12V 24V Solar Cell Panel Charger Regulator with Load Function: 1. Always keep the battery in a fully voltage condition. 2. Prevent the battery from overcharging. 3. Prevent the battery from over-discharging. 4. Prevent the battery from reverse charging to solar panels during nights. 5. Reverse Polarity Protection for Battery 6. Reverse Polarity Protection for Solar Panels 7. When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of the battery is back to normal and the load will restart working. 8. Thunder protection 9. According to the battery voltage grade, the controller can automatically set the charge-off voltage, the load-off voltage, and the load-restore voltage. (The parameter is default under 25℃ condition, locked by the CPU procedure, cannot be adjusted.) 10. The controller will automatically compensate for the temperature of The charging voltage is adjusted according to the changes in ambient temperature. Features: 1. Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current, discharge current, accurate real-time display, and power generation at a glance. 2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection During charging, bidirectional focusing tracking. 3. Large-screen LCD, adjustable charging and discharging parameters. Ultra-wide charge and discharge adjustable, as long as you understand the characteristics of the battery, set its corresponding charging parameters, you can charge the battery. When the output is off, the time can be adjusted, which is more convenient. (On the market, there is no point adjustment) 4. A complete three-phase charge management effectively protects the battery, and the battery is more durable. 5. Built-in overheating, overcurrent, short circuit, open circuit protection, reverse connection protection, when the fault is eliminated, the controller automatically recovers, a nd does not damage itself The device. 6. Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat. 7. R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection. Note: It is high-quality compatible MPPT + PWM Solar Controllers, not 100% True MPPT Specifications 1. Rated voltage: 12/24V 2. Rated current: 30/40/50/60/100A 3. Max. PV input power: 750W(12V) / 1200W(24V) 4. System voltage: 12 / 24V adaptive 5.Rated charging current: 30A \| 40A \| 50A\| 60A \| 100A 6.Rated discharge current: 10A \| 20A \| 20A \| 30A \| 30A 7.Solar photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36V solar panel 8.Full Voltage Value : Lithium Battery (12.2V) \| B02 Colloidal Battery (14.2V) \| B03 Open Cell (14.6V) 9. Floating Charge Voltage: 13.7 V ( Default, Adjustable ) 10.Discharge cut-off voltage::10.7 V ( default, adjustable ) 11.Discharge recovery voltage: 12.6 V ( default, adjustable ) 12.Standby current :10mA 13.USB Output : 5V / 2A MAX 14.Operating temperature:- 35 - 60 Package Includes： 1 x Solar Panel Battery Charge Controller 1 x User Manual

Details description

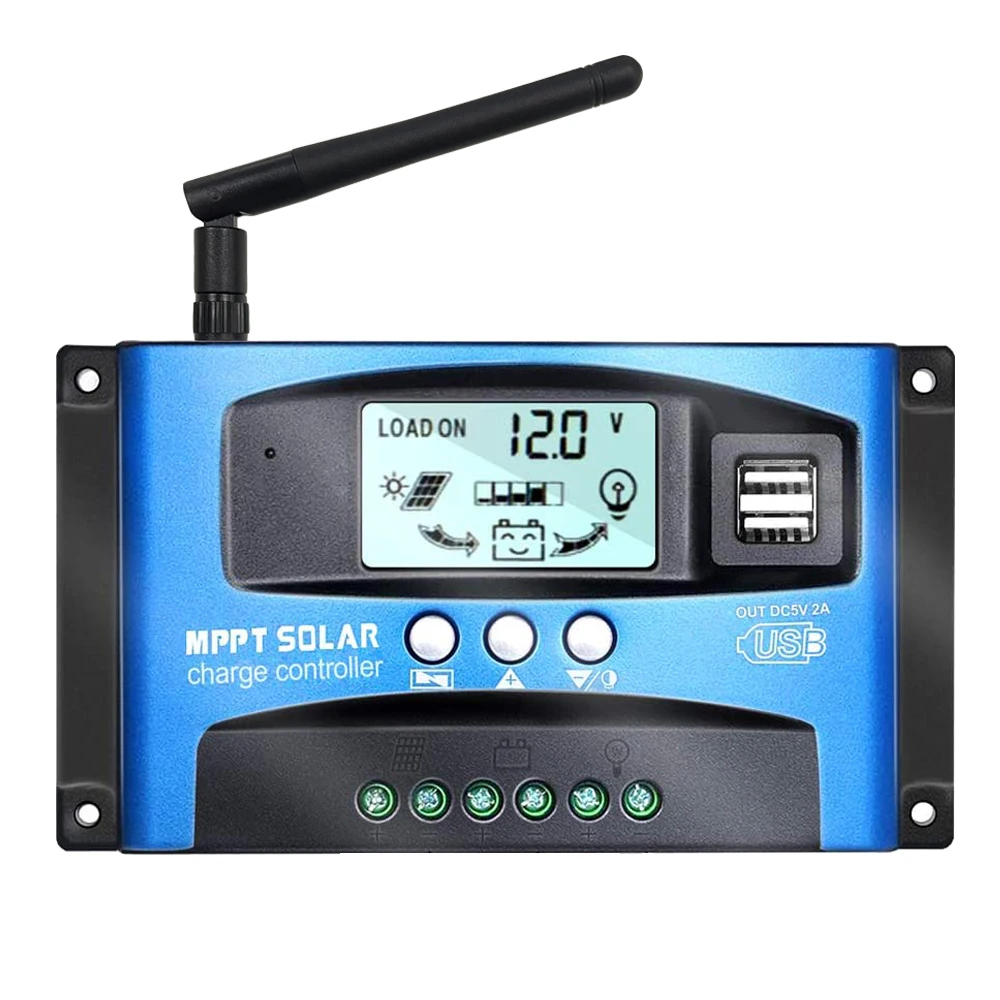

Y&H 100A 60A 40A MPPT Solar Charge Controller Dual USB LCD Display 12V 24V Solar Cell Panel Charger Regulator with Load

Function:

1. Always keep the battery in a fully voltage condition.

2. Prevent the battery from overcharging.

3. Prevent the battery from over-discharging.

4. Prevent the battery from reverse charging to solar panels during
nights.

5. Reverse Polarity Protection for Battery

6. Reverse Polarity Protection for Solar Panels

7. When the battery voltage is low, the controller will
automatically cut off the load from the system. If the voltage of the
battery is back to normal and the load will restart working.

8. Thunder protection

9. According to the battery voltage grade, the controller can
automatically set the charge-off voltage, the load-off voltage, and the
load-restore voltage. (The parameter is default under 25℃
condition, locked by the CPU procedure, cannot be adjusted.)

10. The controller will automatically compensate for the temperature of
The charging voltage is adjusted according to the changes in ambient temperature.

Features:

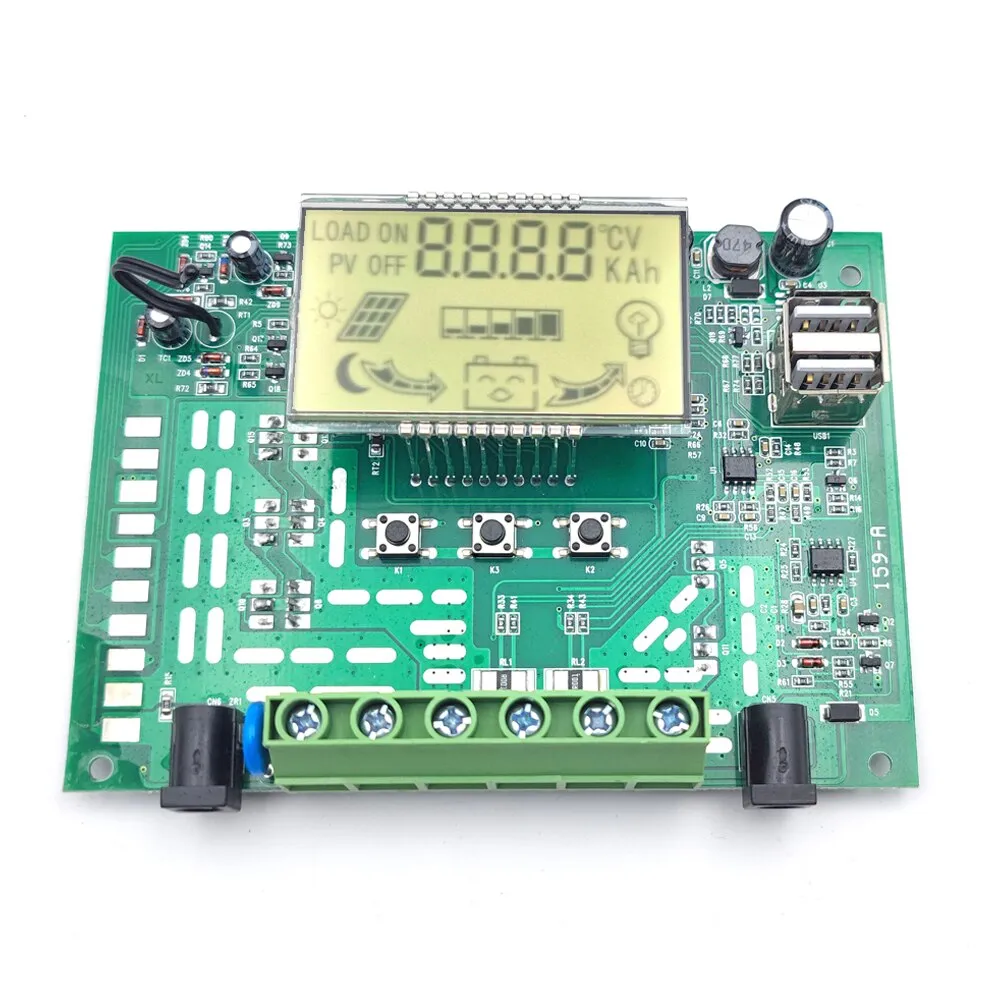

1. Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current,
discharge current, accurate real-time display, and power generation at a glance.

2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection
During charging, bidirectional focusing tracking.

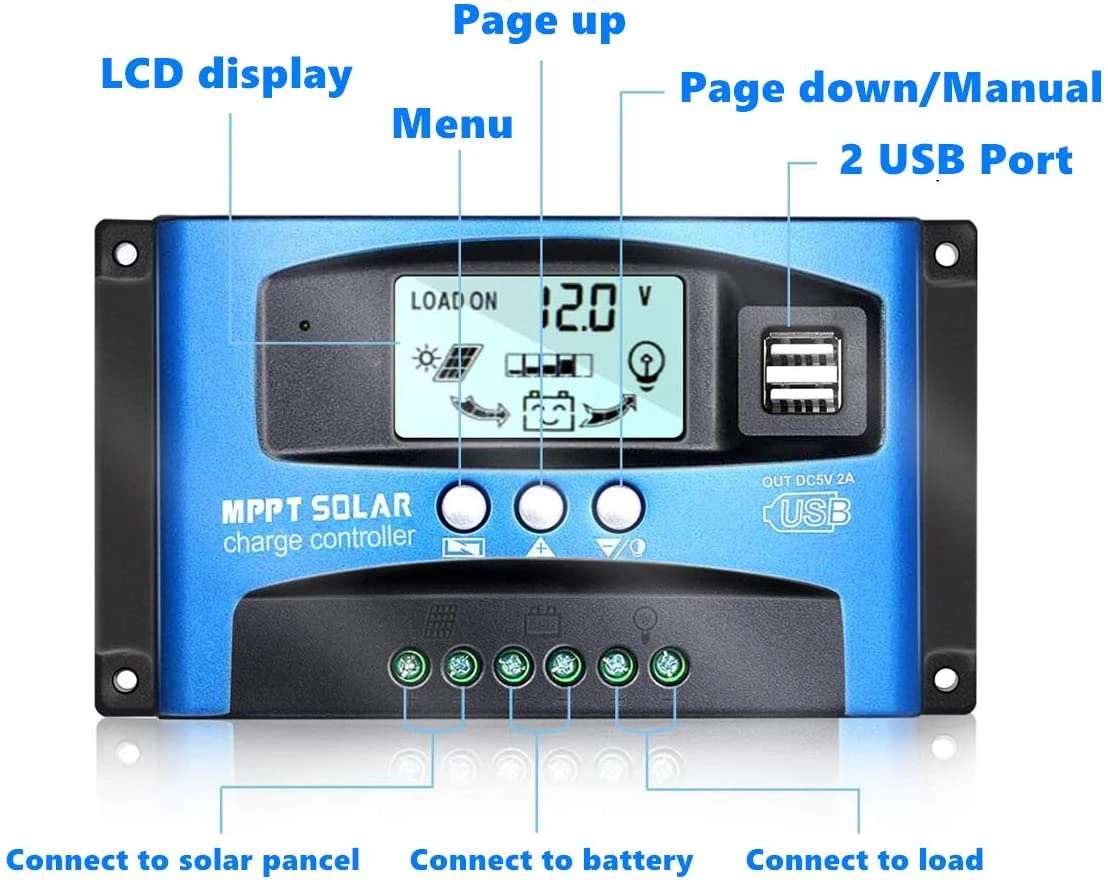

3. Large-screen LCD, adjustable charging and discharging parameters. Ultra-wide charge
and discharge adjustable, as long as you understand the characteristics of the battery, set its
corresponding charging parameters, you can charge the battery. When the output is off, the time
can be adjusted, which is more convenient. (On the market, there is no point adjustment)

4. A complete three-phase charge management effectively protects the battery, and the battery is more
durable.

5. Built-in overheating, overcurrent, short circuit, open circuit protection, reverse connection
protection, when the fault is eliminated, the controller automatically recovers, a nd does not damage itself
The device.

6. Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat.

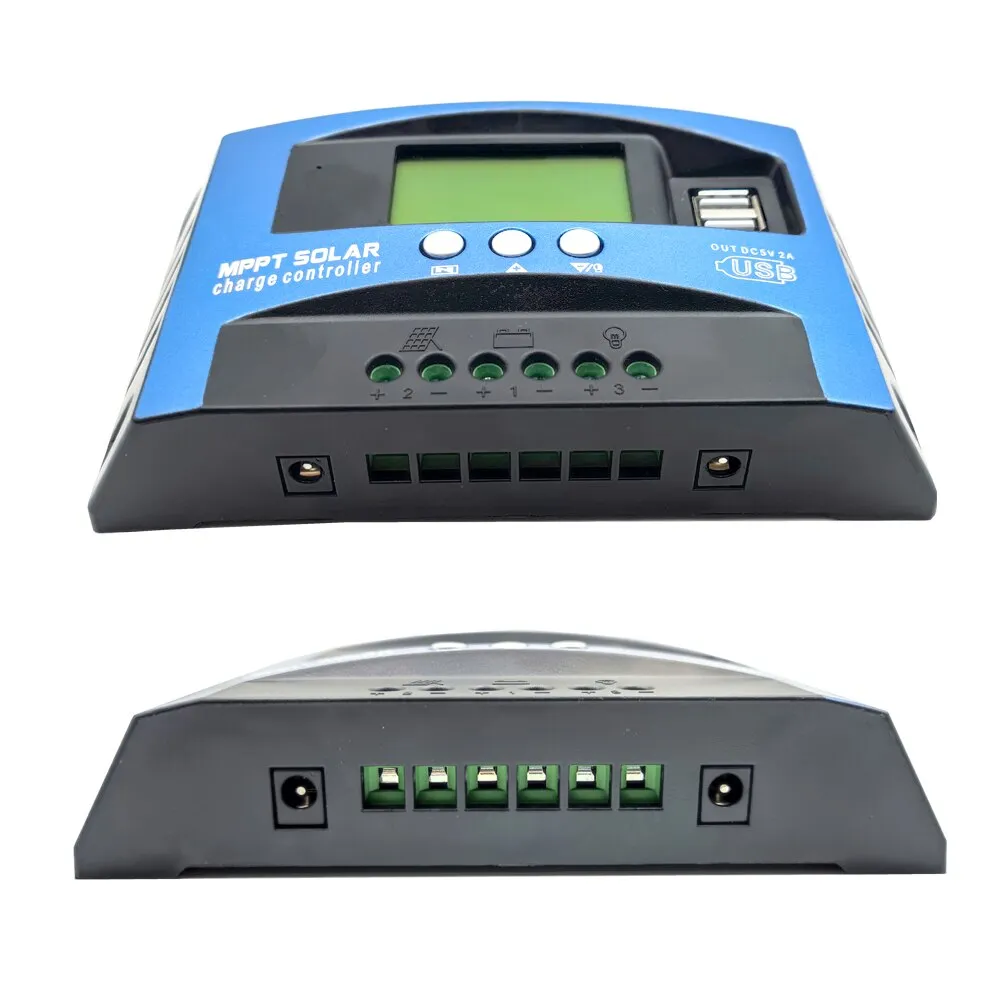

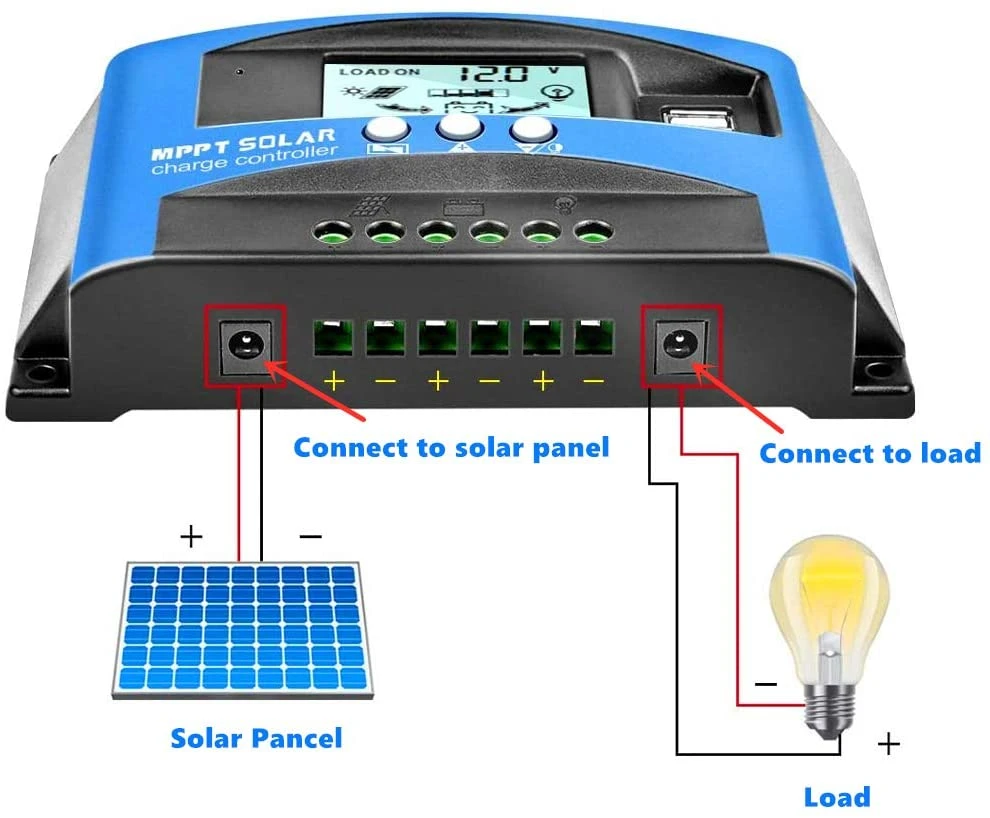

7. R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection.

Note: It is high-quality compatible MPPT + PWM Solar Controllers, not 100% True MPPT

Specifications

1. Rated voltage: 12/24V

2. Rated current: 30/40/50/60/100A

3. Max. PV input power: 750W(12V) / 1200W(24V)

4. System voltage: 12 / 24V adaptive

5.Rated charging current: 30A | 40A | 50A| 60A | 100A

6.Rated discharge current: 10A | 20A | 20A | 30A | 30A

7.Solar photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36V solar panel

8.Full Voltage Value : Lithium Battery (12.2V) | B02 Colloidal Battery (14.2V) | B03 Open Cell (14.6V)

9. Floating Charge Voltage: 13.7 V ( Default, Adjustable )

10.Discharge cut-off voltage::10.7 V ( default, adjustable )

11.Discharge recovery voltage: 12.6 V ( default, adjustable )

12.Standby current :10mA

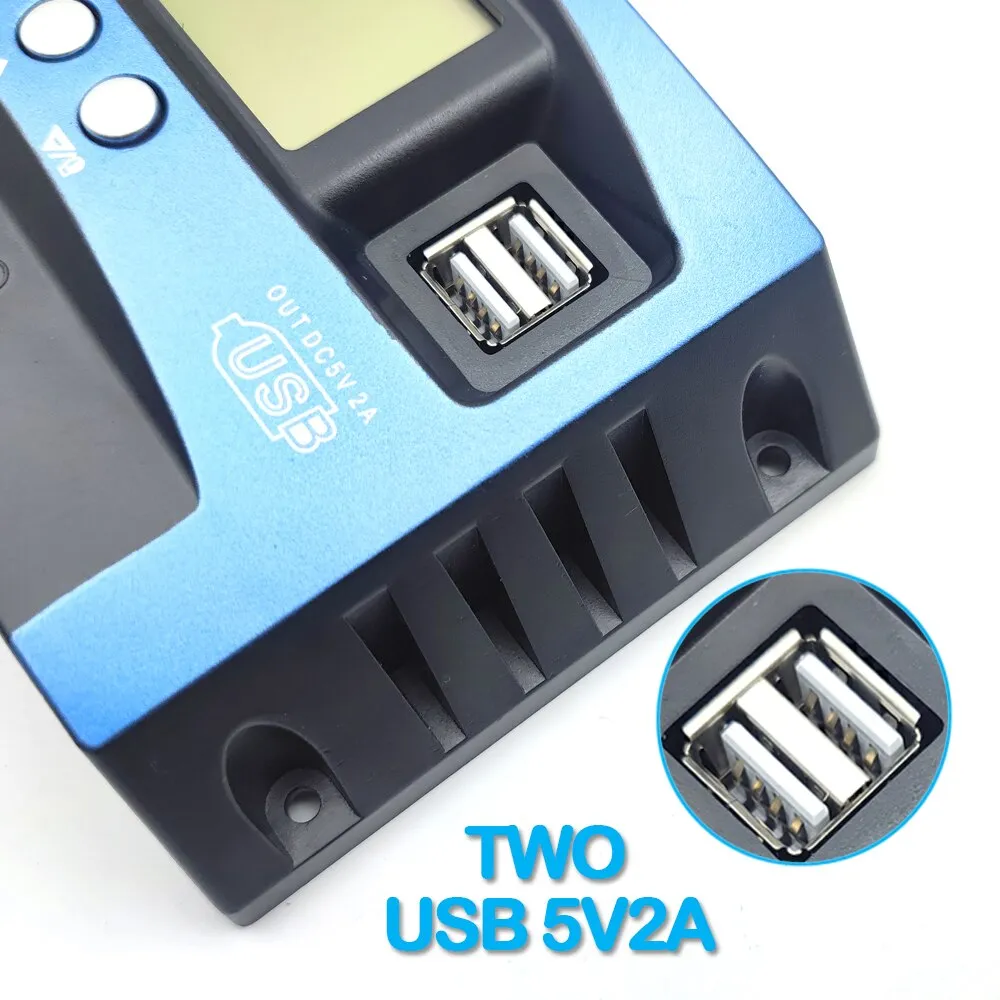

13.USB Output : 5V / 2A MAX

14.Operating temperature:- 35 - 60
