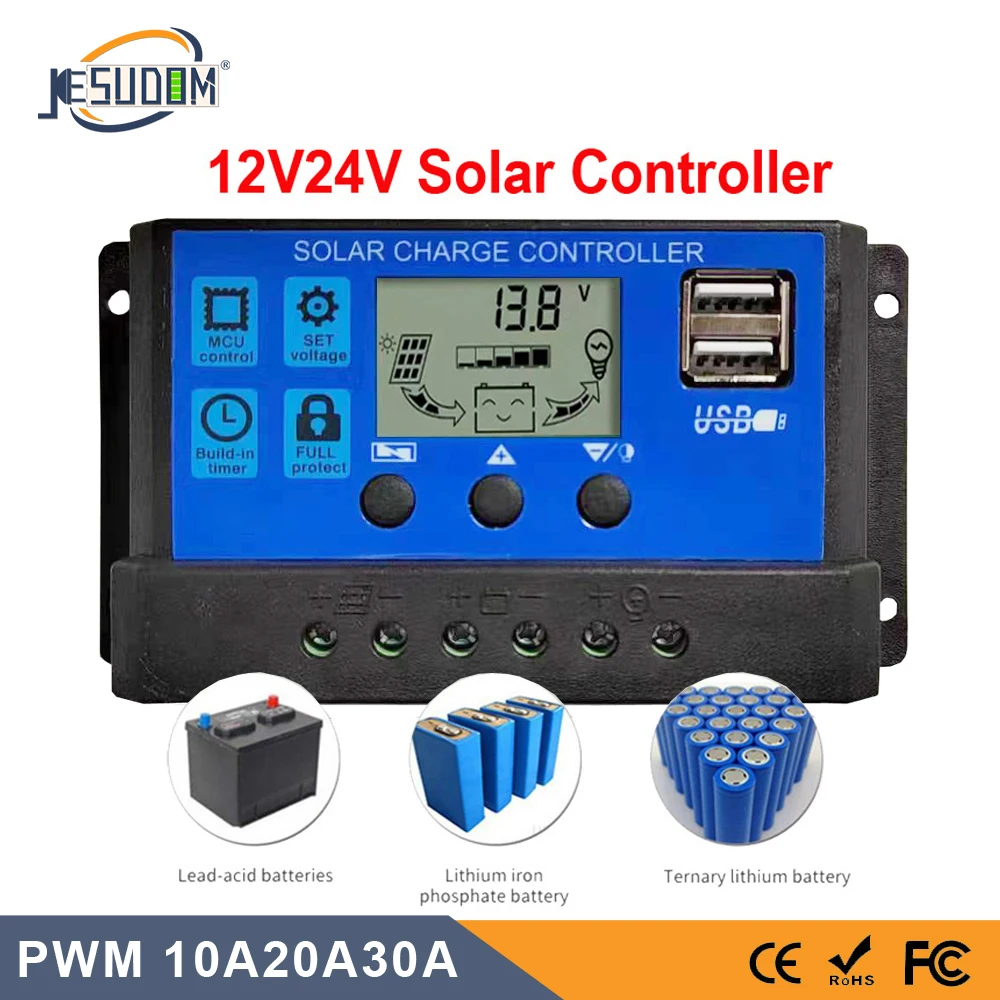

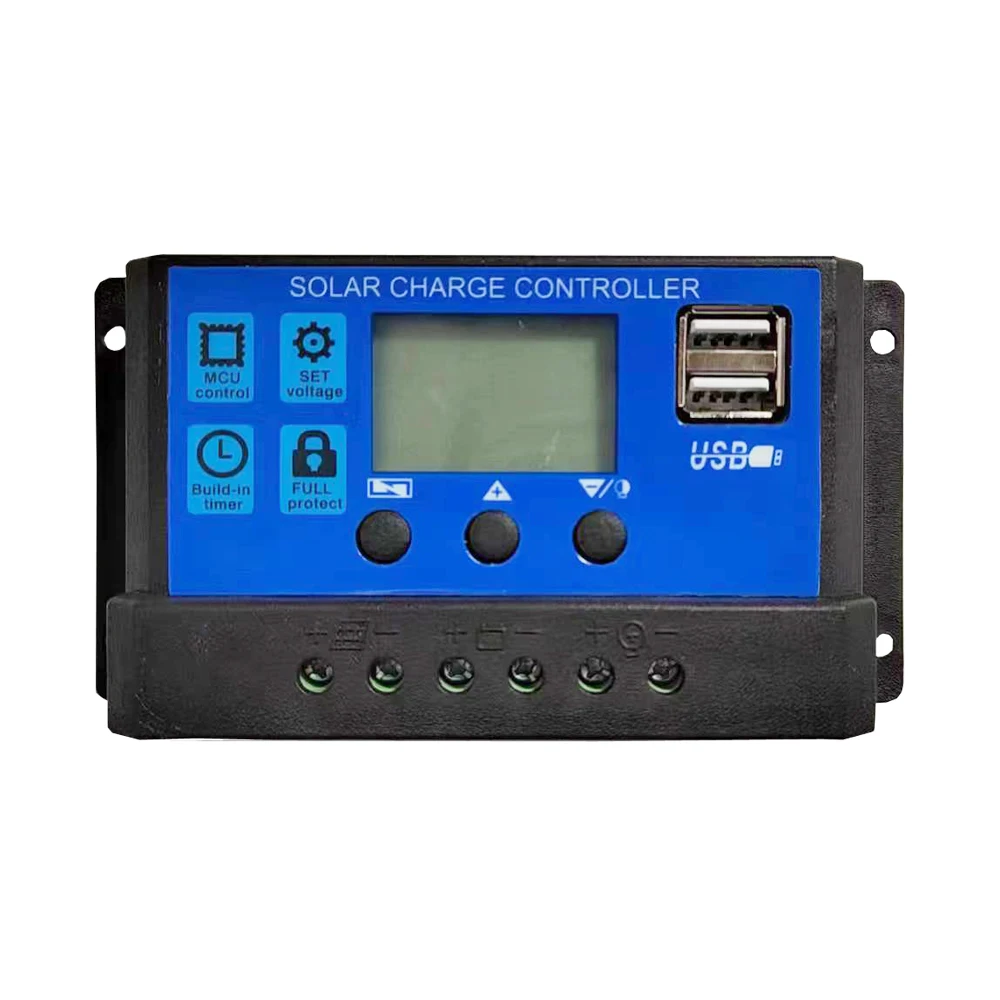

Solar Panel Controller 10A20A30A 12V24V Auto Battery Charge Regulator PWM Controller LCD Dual USB for PV Home

Solar Panel Controller 10A20A30A 12V24V Auto Battery Charge Regulator PWM Controller LCD Dual USB for PV Home

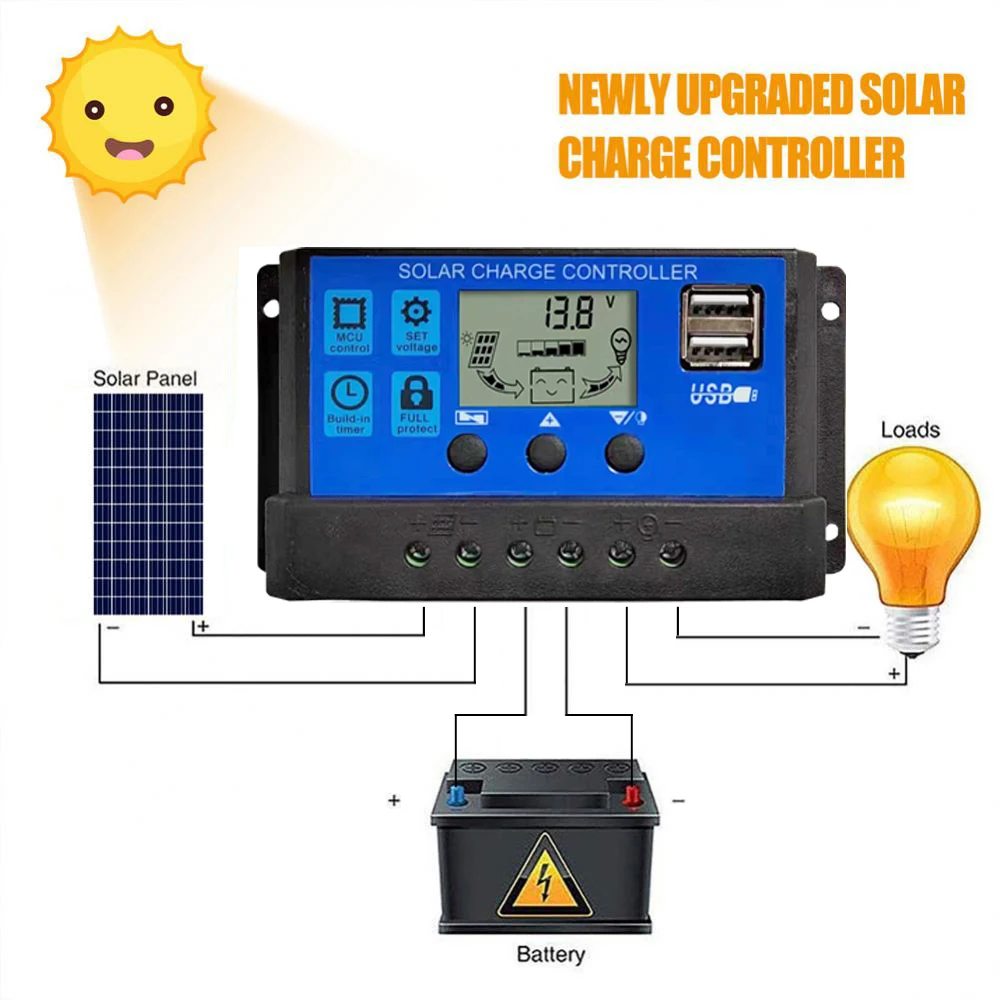

This controller is an intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, to fully meet your various application requirements.

This is a NEW Solar Controller, It can fully meet your home Photovoltaic system(including a home lighting system)requirements. It can recognise 12V and 24V Lead acid and gel battery automatically.

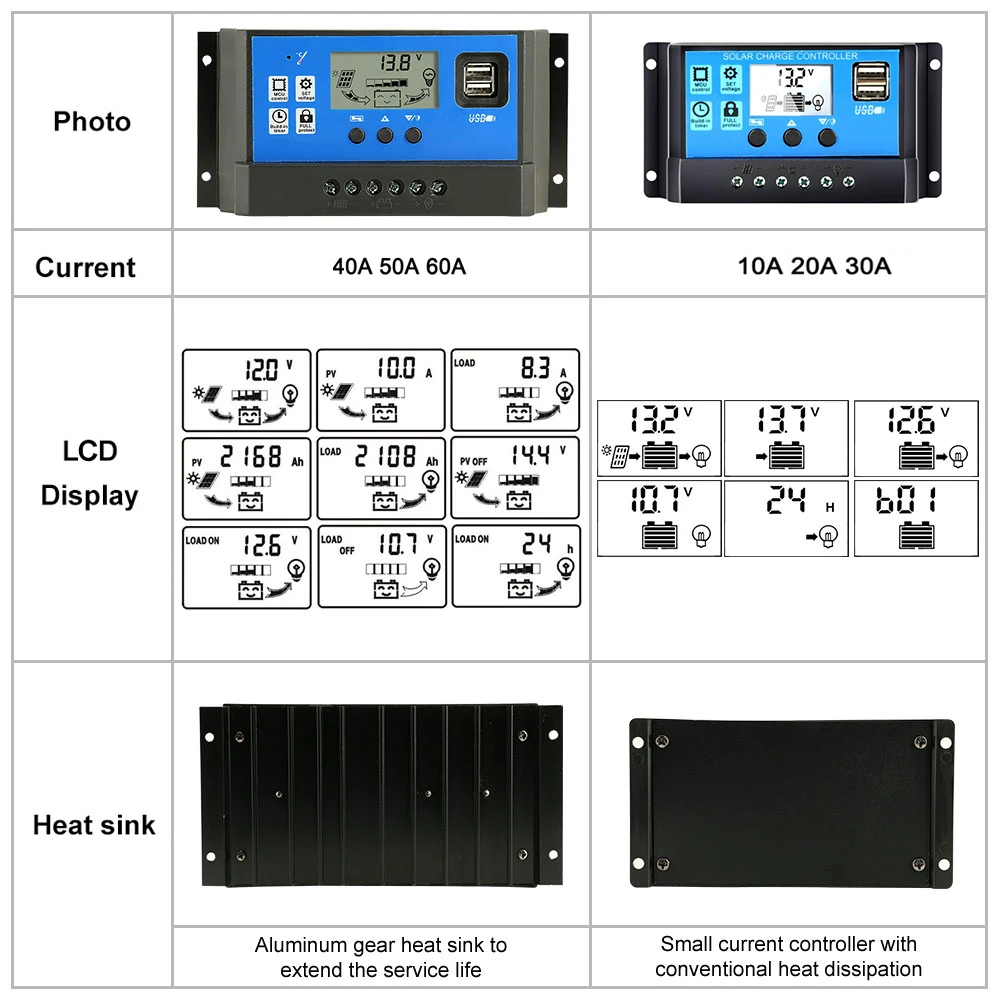

There are optional 10A 20A 30A model

10A:

if your battery is 12V ,the max solar panel input is 25V 120W

if your battery is 24V ,the max solar panel input is 50V 240W

20A:

if your battery is 12V, the max solar panel input is 25V 240W

if your battery is 24V, the max solar panel input is 50V 480W

30A:

if your battery is 12V ,the max solar panel input is 25V 360W

if your battery is 24V ,the max solar panel input is 50V 720W

Features:

1. Build-in industrial microcontroller.

2. Big LCD display, all adjustable parameters.

3. Fully 4-stage PWM charge management.

4. Build-in short-circuit protection,open-circuit protection, reverse protection, and over-load protection.

5. Dual mosfet Reverse current protection, low heat production.

Model

PWM 10A

PWM 20A

PWM30A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

Discharging Current

10A

10A

10A

Max.Solar Input

50V(for 24V battery) 25V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flod)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

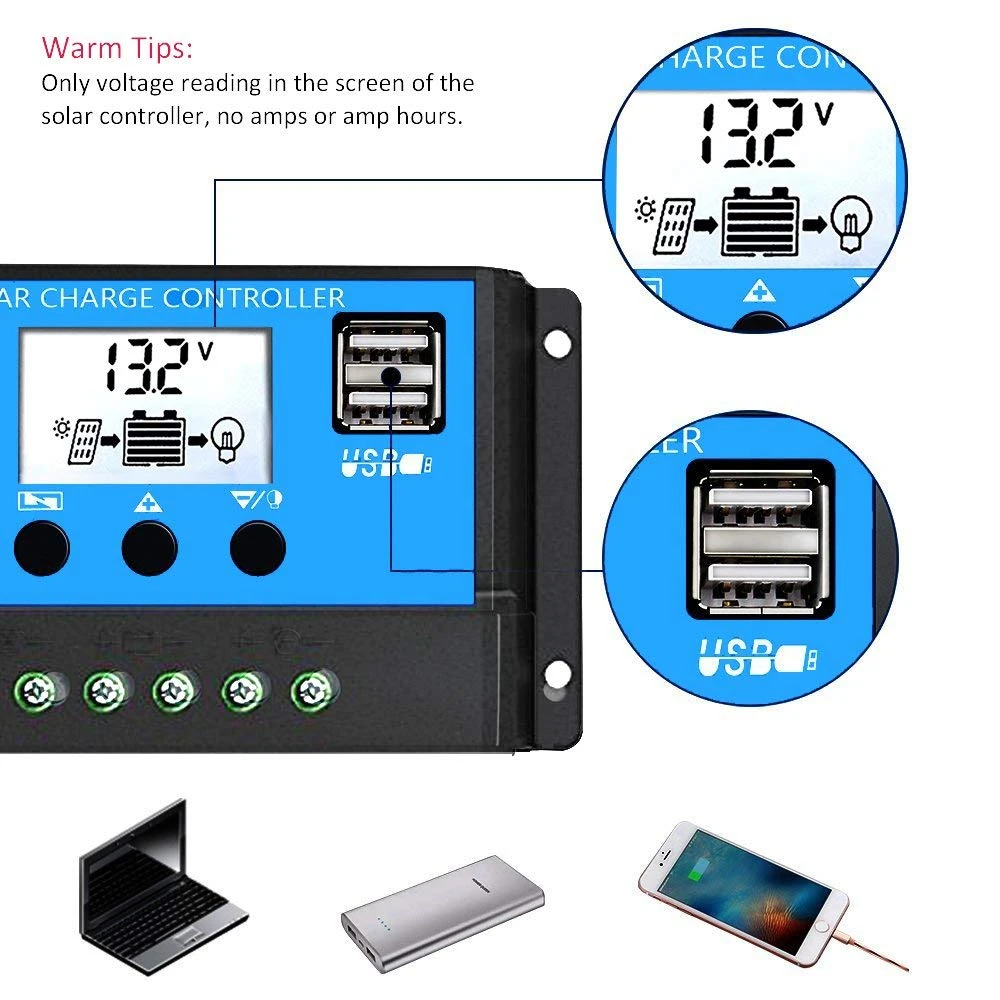

USB Output

5V/3A

Self-consume

<10mA

Operating temperature

-35 °C to 60°C

Size

133.5*70*35mm
