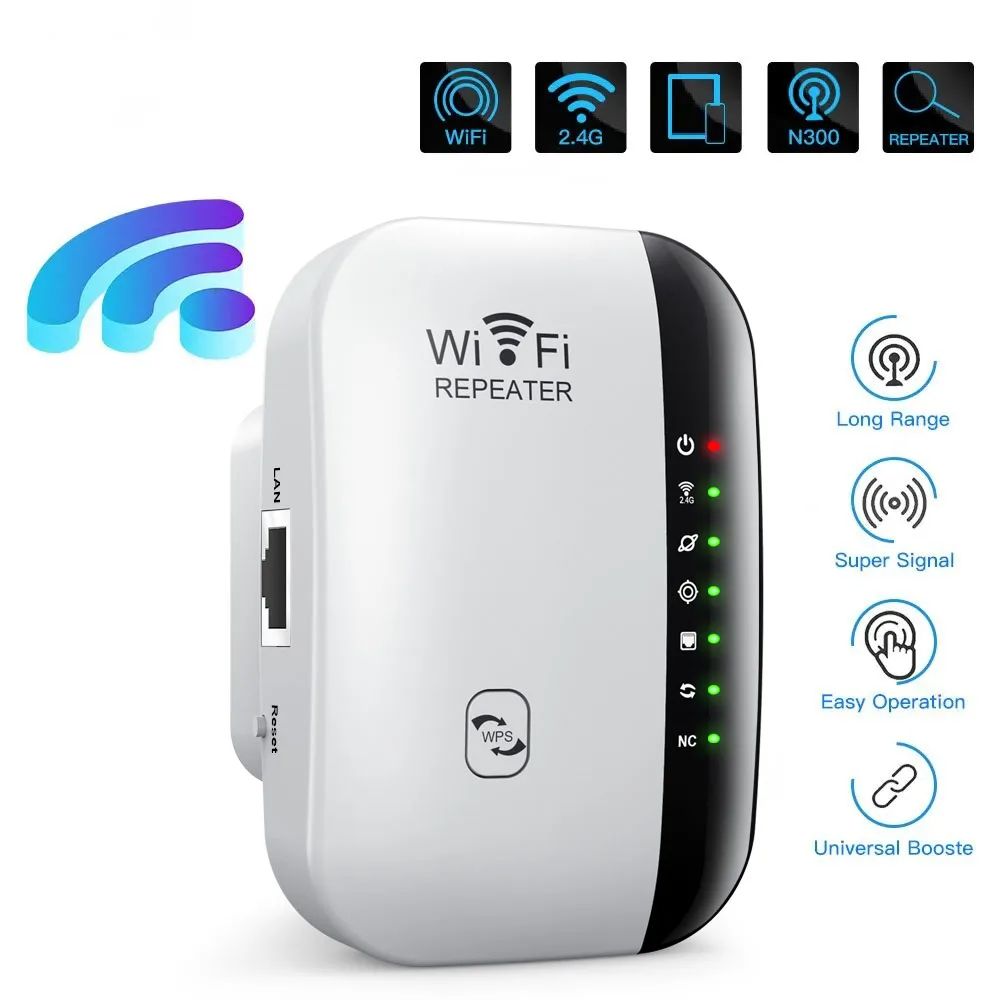

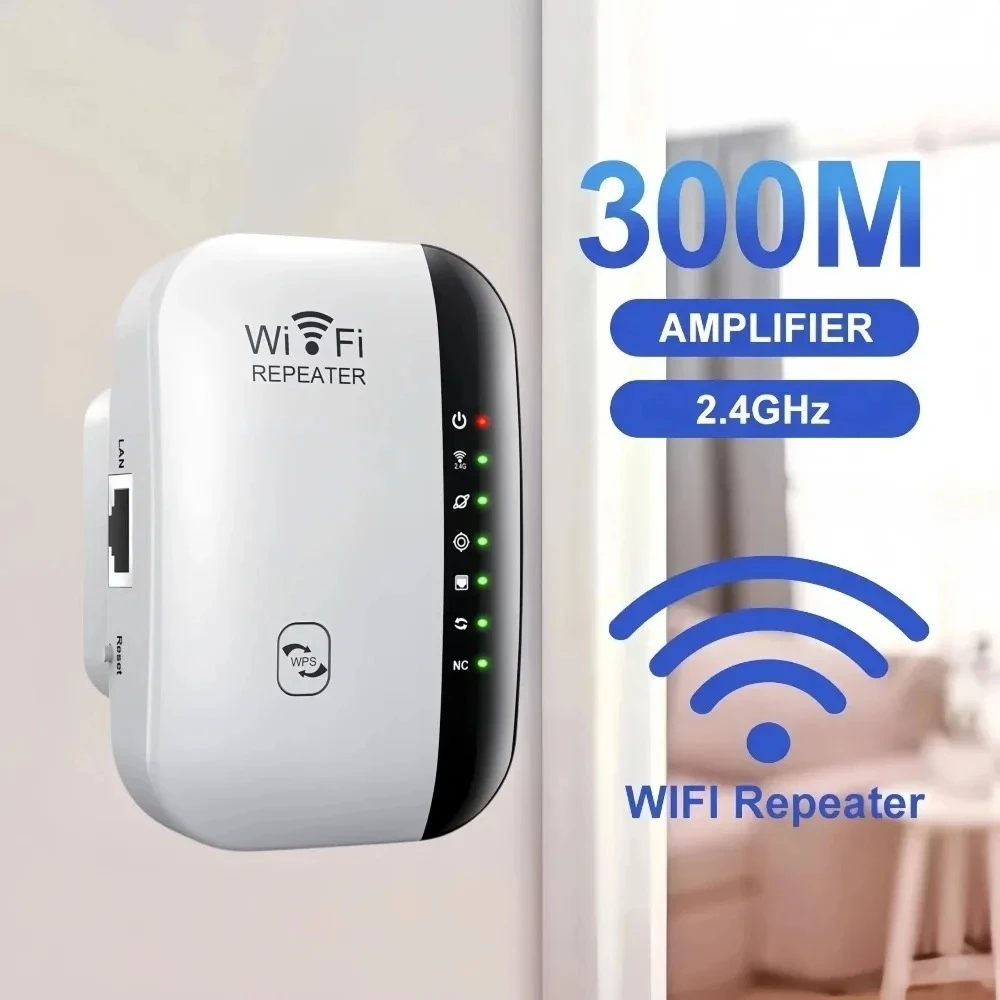

Wireless WIFI Repeater 2.4G Router Wifi Range Extender Wi-Fi Signal Amplifier 802.11N Network Card Adapter 300Mbps

Specifications:

Standard IEEE802.11b, IEEE 802.11g, IEEE 802.11n

Modulation 802.11b: DSSS / BPSK / QPSK / CCK

802.11g: OFDM / DSSS / BPSK / QPSK / CCK

802.11n: OFDM / DSSS / BPSK / QPSK / CCK

Speed 802.11b: 11Mbps

802.11g: 54Mbps

802.11n: 300Mbps

Channel 11: (Ch.1-11) – USA

13: (Ch.1-13) – Europe

14: (Ch.1-14) – Japan

Frequency band 2.412~2.462GHz -USA

2.412~2.472GHz -Europe ETSI

2.412~2.484GHz -Japan

Power 802.11b: 17dBm ± 1.5 dBm

802.11g: 14dBm ± 1.5 dBm

802.11n: 14dBm ± 1.5 dBm

Sensitivity 802.11b: -83dBm /802.11g: -70dBm / 802.11n: -68dBm

Antenna 2 x 3dBi Integrated Antennas

Distance Outdoors 300m, Indoor 100m (According to the actual environment change)

Security 64/128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x, WPA-PSK, WPA2-PSK, MAC, WDS

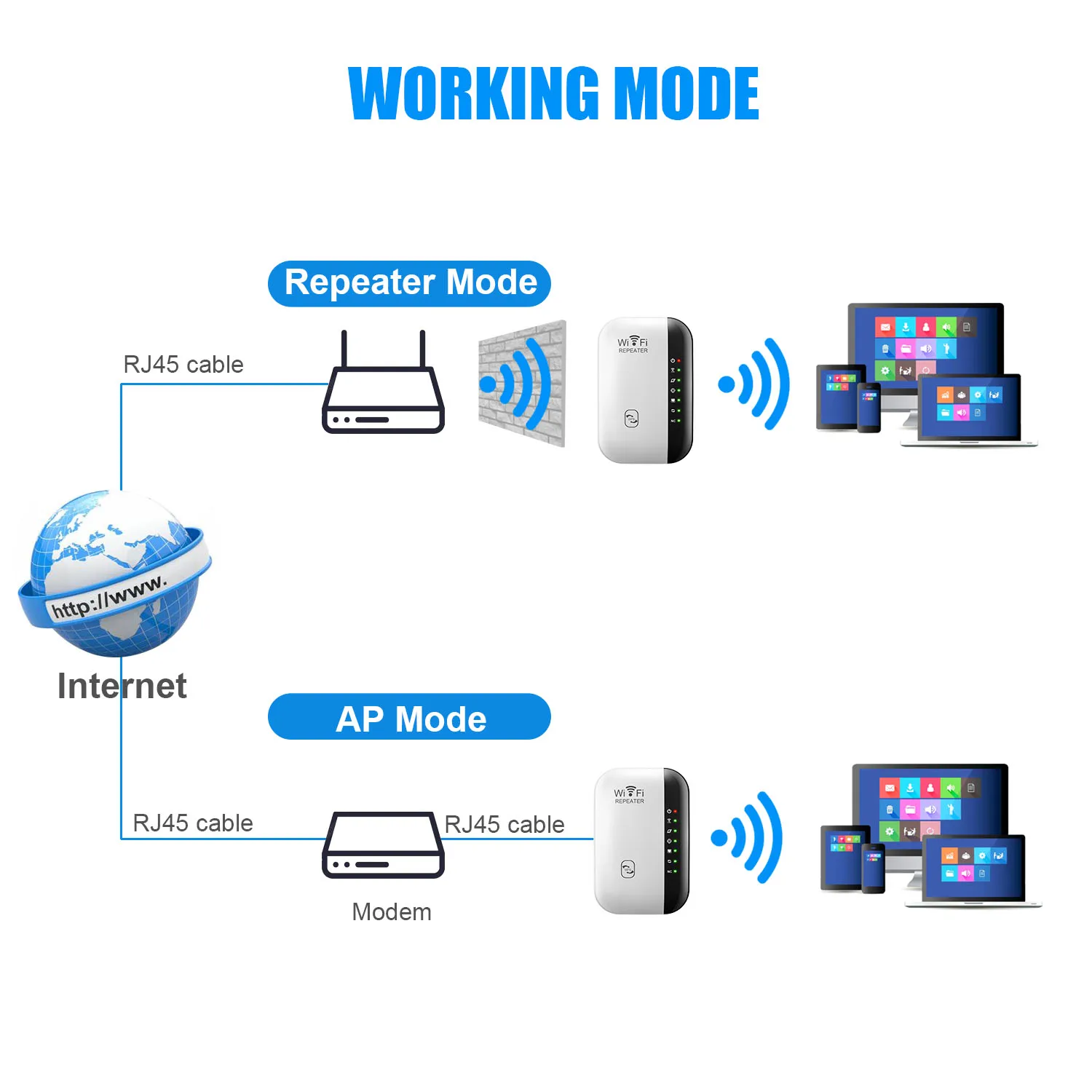

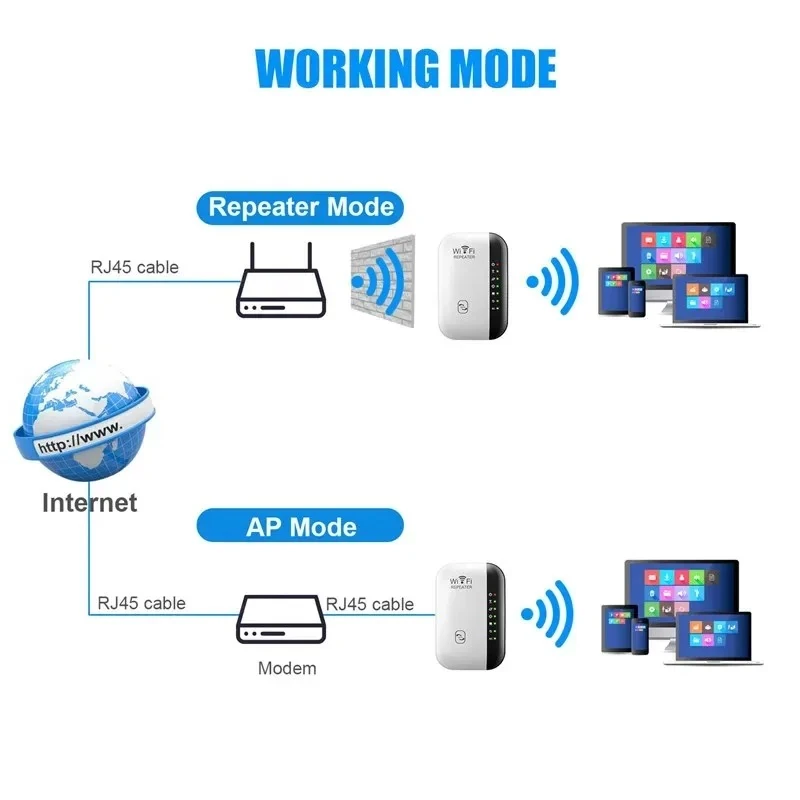

Mode AP Mode / Repeater Mode

Wireless Security Wireless MAC address Screening

Wireless security function switch

64/128/152-bit WEP

WPA-PSK/WPA2-PSK, WPA/WPA2

Function IP bandwidth control (Router mode support)

DNS Relay (Router mode support)

VPN Pass-through (Router mode support)

Static Router (Router mode support)

DHCP Server (Router mode support)

DHCP settings Server list (Router mode support)

Static IP address allocation (Router mode support)

Specifications:

Ports 1 x RJ45 Jack

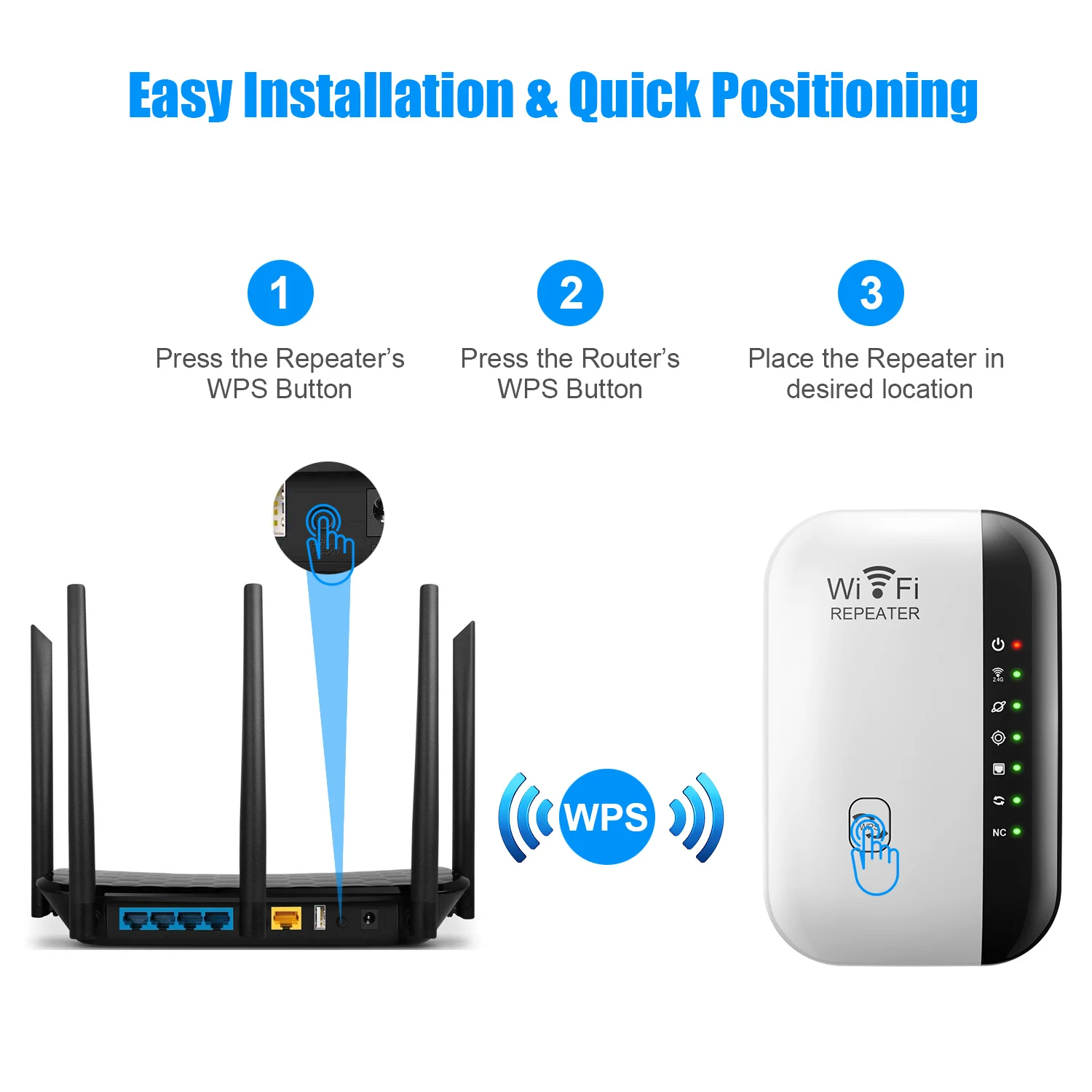

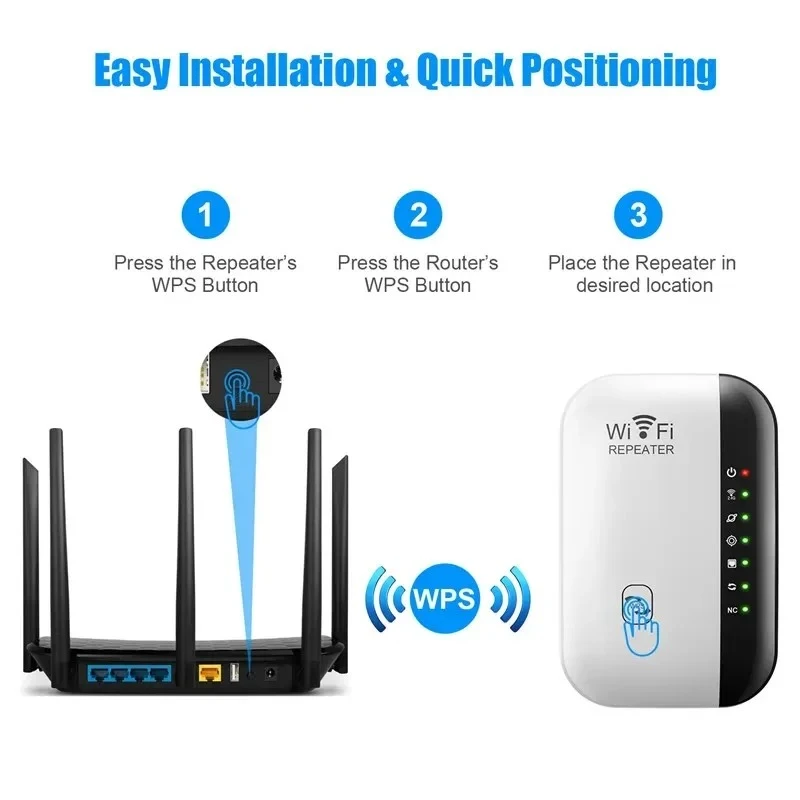

Button Reset WPS

LED 1 * LAN, 1 * WLAN, 1 * Power, 1 * WPS

Chipset RTL8196E

Flash 16Mbps

SDRAM 128Mbps

Power supply Internal DC5V / 1A

Power consumption 2.3W

Rated voltage/ frequency /current 100-240 VAC 50/60Hz, 0.1A Max.

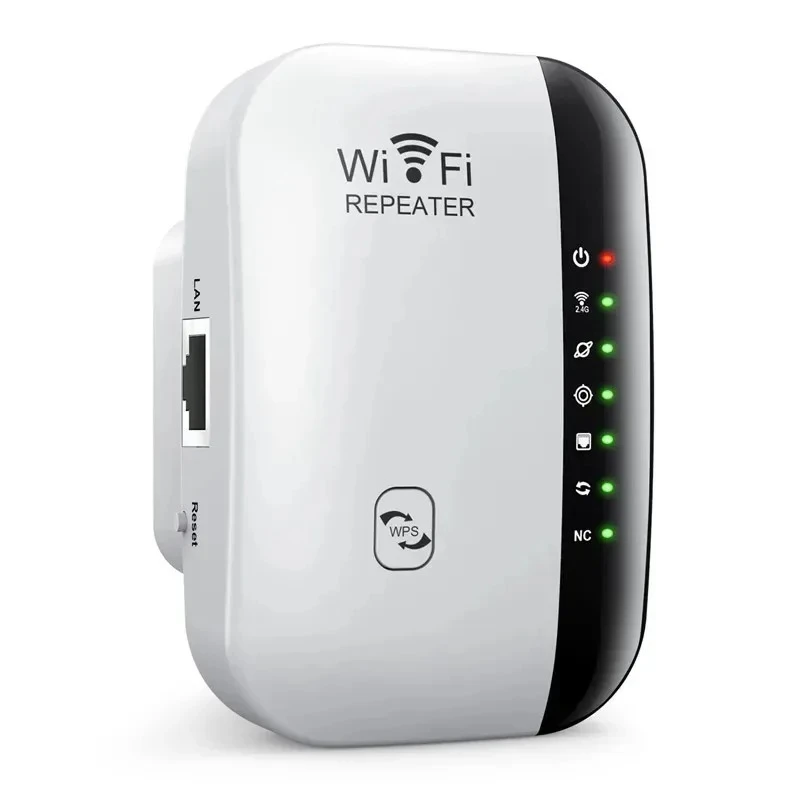

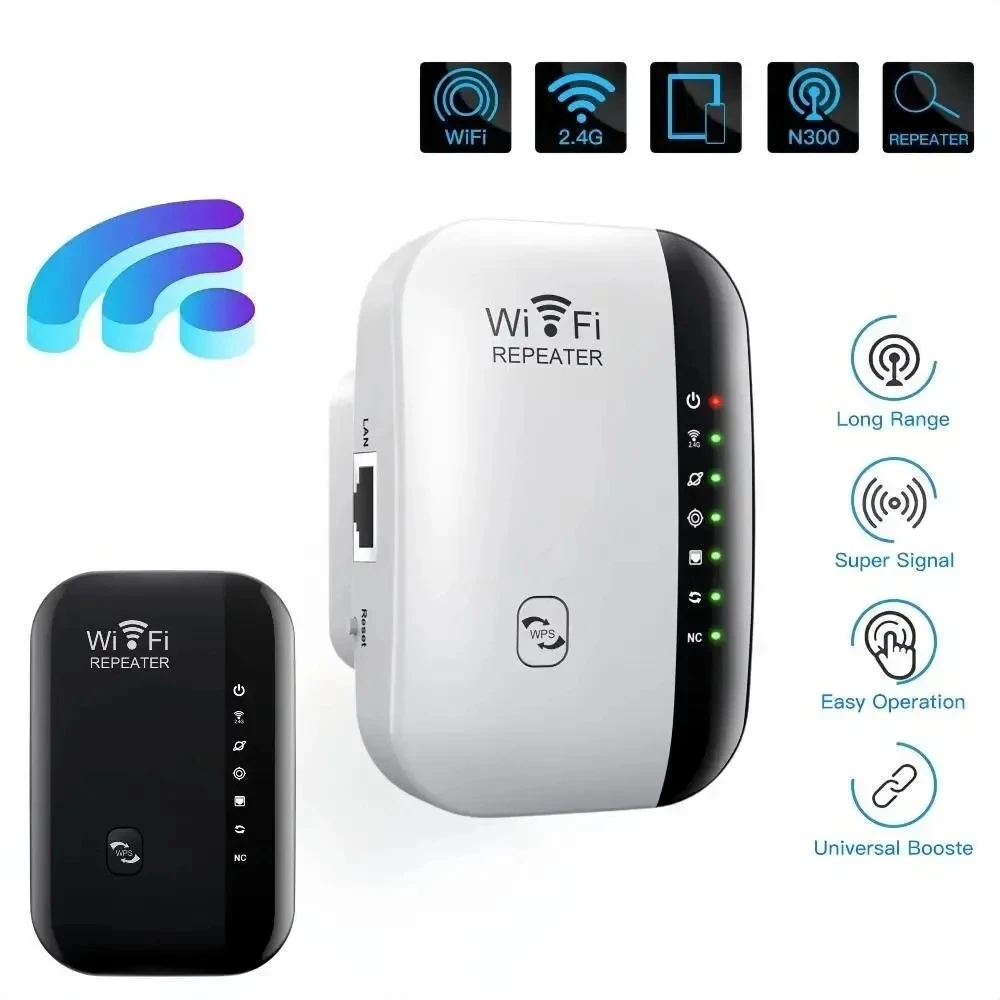

300Mbps 7 Lights WiFi Repeater:

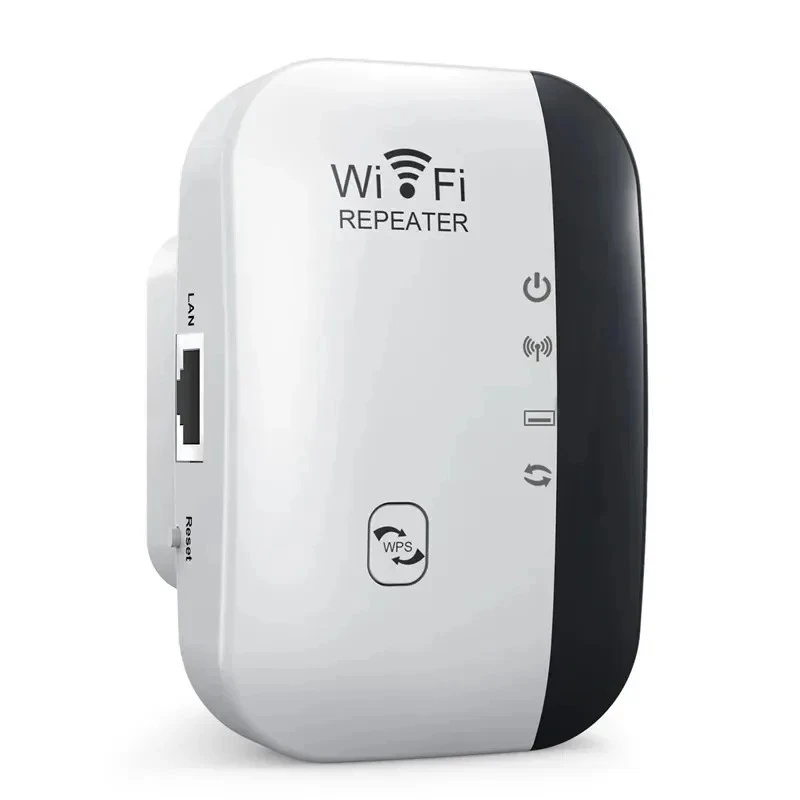

300Mbps 4 Lights WiFi Repeater
